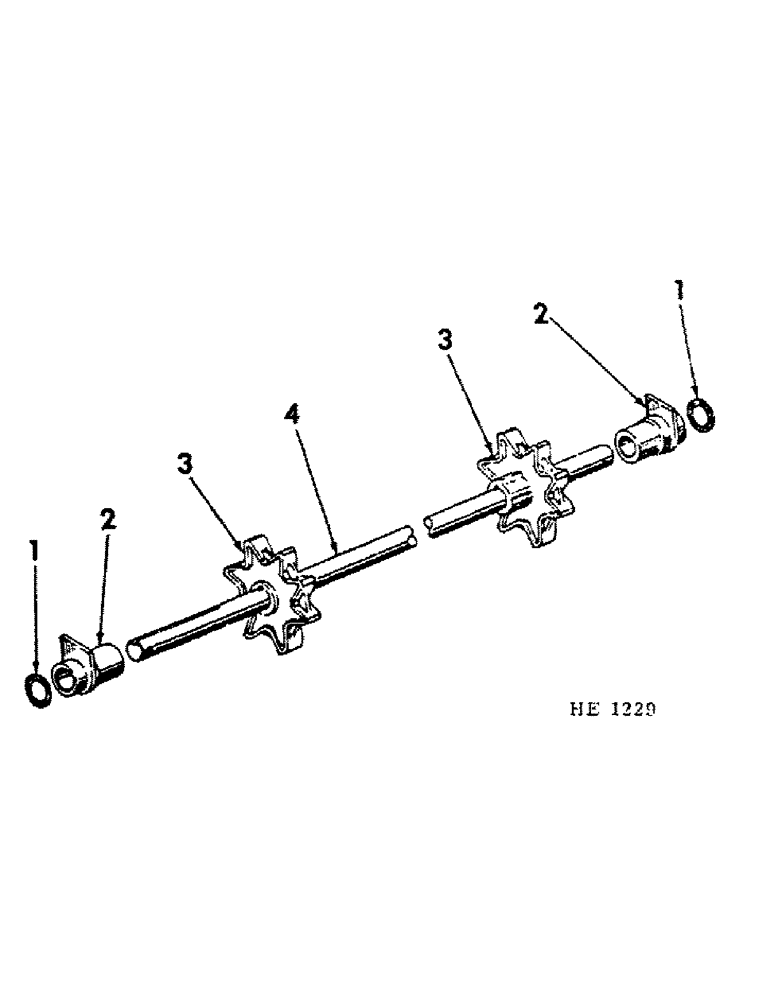

Запчасти Case IH 130 (H-27) - REAR APRON SHAFT

1

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.

2

619540R1

CAGE

HOUSING, shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

3

611487R2

SPROCKET ASSY.

SPROCKET, 8T apron shaft

2шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

2шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

4

619547R1

SHAFT

rear apron

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

1шт.

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.
