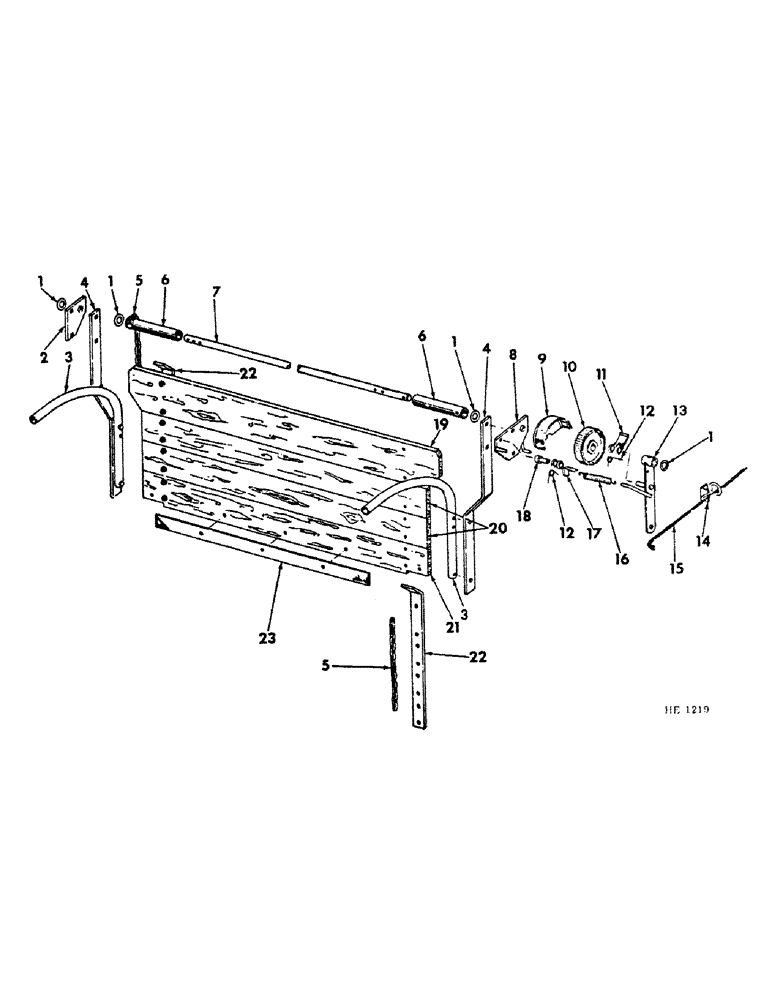

Запчасти Case IH 130 (H-26) - LIQUID MANURE REAR ENDGATE AND DRIVE

1

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

5шт.

2

592657R1

BLOCK, endgate shaft support LH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18695R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1 1/4", Gr 2

BOLT, 7/16 x 1-1/4" type 1 crg

2шт.

271501

SOCKET

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

598776R1

PIPE, endgate board support

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4"

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

598676R1

V-BELT,0.88" W x 131.62" L

SUPPORT, endgate shaft

2шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4" crg

2шт.

180138

BOLT,Hex, 3/8" - 16 x 3", Gr 5

3/8 x 3"

2шт.

189304

BOLT,Hex, 3/8" - 16 x 3 1/4", Gr 5

3/8 x 3-1/4"

2шт.

120376

NUT,5/16"-18, G5

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

5

598775R1

CHAIN, endgate lift

2шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2"

2шт.

18687R1

CARRIAGE BOLT,Sq Nk, 3/8" - 16 x 2 3/4", Gr 2

BOLT, 3/8 x 2-3/4" type 1 crg

2шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

460668R1

WASHER, 13/32 x 3/4 x 16 ga

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

592646R1

PIPE, lift chain

2шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

4шт.

7

598769R1

SHAFT, endgate

1шт.

8

592654R91

SUPPORT, endgate shaft RH

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

9

613855R11

SHIELD, endgate ratchet wheel

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

10

612931R1

WHEEL, 50T ratchet

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

11

608412R91

PAWL

ratchet wheel upper

1шт.

12

612951R1

SPRING

ratchet pawl

2шт.

13

608413R91

LEVER, endgate trip

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

2шт.

New part number.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

14

612934R11

GUIDE

trip lever rope front

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 7/8" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

14

612766R12

GUIDE

trip lever rope centre

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1"

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

15

ROPE, 3/8" sisal x 17-1/2 ft trip (dealer to purchase locally)

1шт.

16

519146R1

SPRING, trip lever

1шт.

17

616361R1

PAWL

ratchet wheel lower

1шт.

18

612949R1

SPACER, ratchet pawl

1шт.

24528R1

BOLT, 7/16 x 2-3/4" type 1 dld crg

1шт.

New part number.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

2шт.

New part number.

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

New part number.

1шт.

272072

HYD TUBE

7/16" slt

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

19

598770R1

BOARD, endgate top

1шт.

20

598771R1

BOARD, endgate centre

2шт.

21

598772R1

BOARD, endgate bottom

1шт.

22

598773R1

BRACE, endgate board

2шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

14шт.

120377

NUT,3/8" - 16, Gr 5

14шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

14шт.

23

598774R1

BAR, weight

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

469668R1

WASHER

13/32 x 3/4 x 16 ga

3шт.
