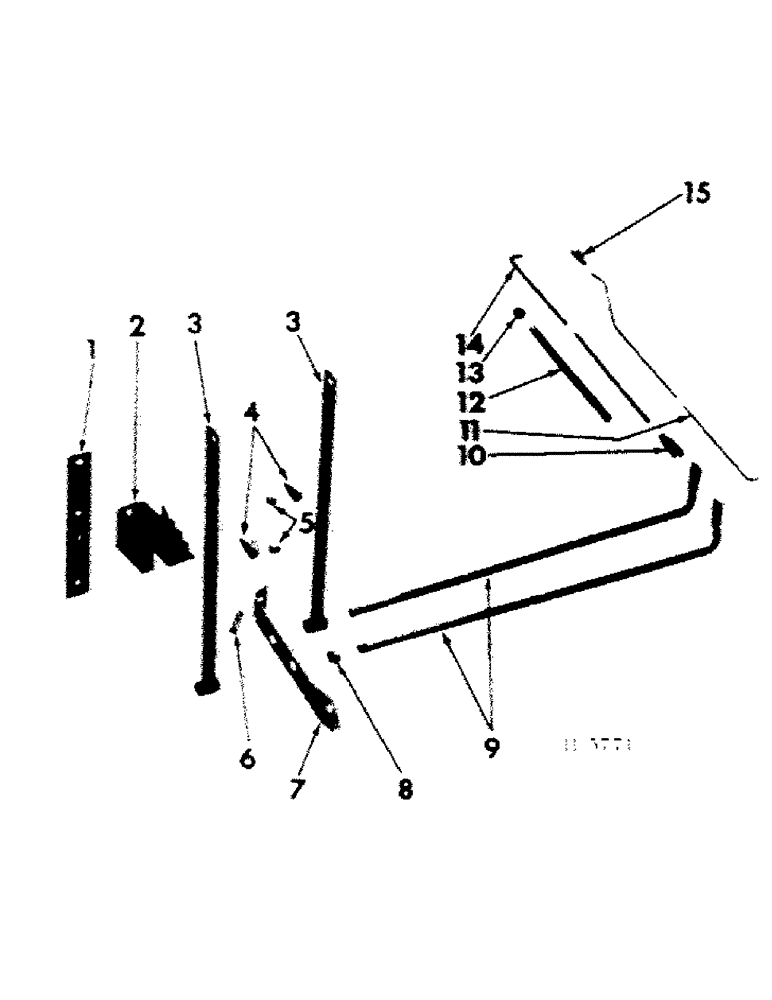

Запчасти Case IH 130 (H-25) - FEED CONTROL ROPE UNIT

1

613748R1

BAR, sector support

1шт.

550296R1

BOLT, 3/8 x 1-1/4" crg

1шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

2

612808R1

SECTOR, trip rope

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

2шт.

New part number.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

3

612785R21

LEVER, rope control trip

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

4

612721R2

PAWL, trip lever

2шт.

180179

BOLT,Hex, 1/2" - 13 x 1 3/4", Gr 5

1/2 x 1-3/4"

2шт.

New part number.

1шт.

179373R1

WASHER, 17/32 x 1 x 16 ga

2шт.

New part number.

1шт.

Q169

WASHER, 25/32 x 1-1/8 x 18 ga

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

5

519628R1

SPACER

BUSHING, trip lever pawl

2шт.

6

4A

SPRING

trip lever clutch

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

7

613749R1

SUPPORT, trip rope sector

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

1шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1" crg

1шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

8

PO17652

SPACER, adjusting rod

2шт.

9

612751R1

ROD, front adjusting

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

178375R1

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

New part number.

1шт.

Q169

WASHER, 25/32 x 1-1/4 x 18 ga

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

10

117825

CLEVIS, 7/16" feed control rod front

1шт.

M780-1/2

PIN, 7/16 x 1-5/16" std-hd-dld

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

11

609328R1

ROD, clutch throw-out

1шт.

134238R1

WASHER

11/32 x 1 x 16 ga

1шт.

New part number.

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

12

612871R1

SPRING

feed control rod

1шт.

13

612868R1

COLLAR, feed control rod

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW, 1/4 x 5/16" hdls cup-pt set

1шт.

14

619556R1

ROD, feed control

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

New part number.

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

15

104037

CLEVIS

5/16" throw-out rod rear

1шт.

Q876

AXLE PIN

PIN, 5/16 x 1-1/8" std-hd-dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

ROPE, 3/8" sisal x 21 ft trip (dealer to purchase locally)

1шт.
