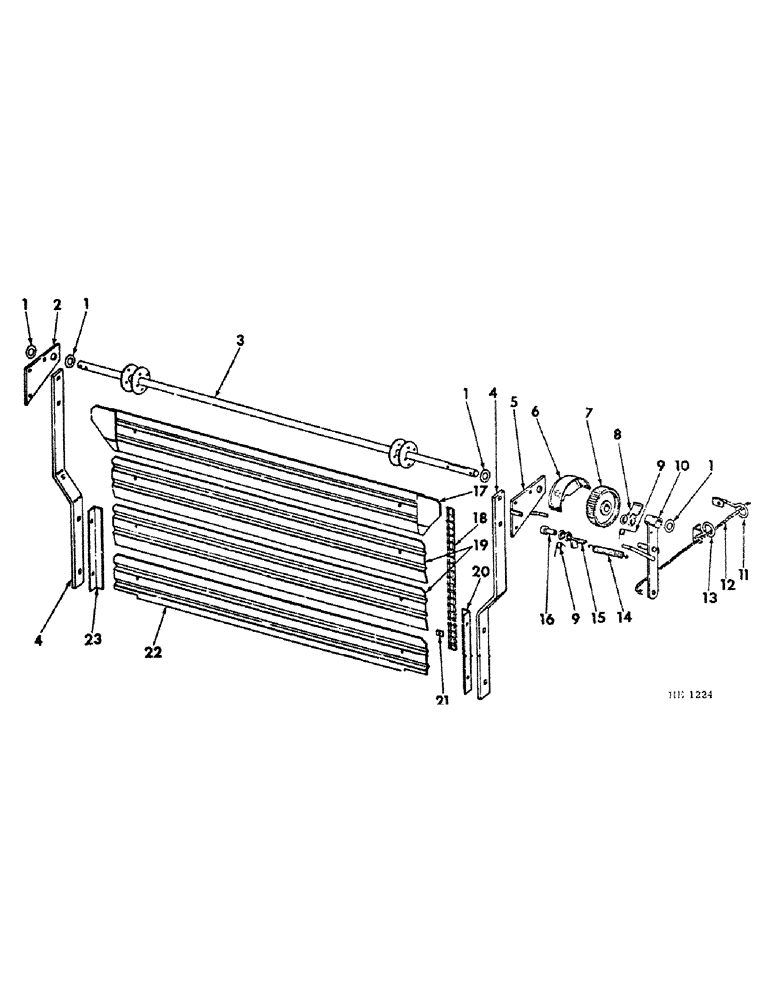

Запчасти Case IH 130 (H-24) - LIQUID MANURE REAR ENDGATE AND DRIVE

1

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

2

612937R2

BRACKET, endgate LH

1шт.

20489R1

BOLT, 7/16 x 1-3/8" type 1 crg

2шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

2шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

2шт.

3

612933R21

SHAFT, endgate

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

4шт.

478258R1

WASHER

1-5/32 x 1-3/4 x 11 ga

1шт.

New part number.

1шт.

4

609345R1

STRAP, endgate support

2шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

2шт.

New part number.

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

4шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

6шт.

127507H

WASHER

13/32 x 7/8 x 7 ga

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

5

608411R91

BRACKET, endgate shaft RH

1шт.

20489R1

BOLT, 7/16 x 1-3/8" type 1 crg

1шт.

24528R1

BOLT, 7/16 x 2-3/4" dld-crg

1шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16" slt-hex

1шт.

NLS

NO LONGER SERVICED

NUT, 7/16"

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

6

613855R11

SHIELD, endgate ratchet wheel

1шт.

550796R1

CARRIAGE BOLT,3/8" - 16 x 1 1/4", Grade 5

BOLT, 3/8 x 1-1/4" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

7

612931R1

WHEEL, 50T ratchet

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

8

616361R1

PAWL

ratchet wheel lower

1шт.

9

612951R1

SPRING

ratchet pawl

2шт.

10

608413R91

LEVER, endgate trip

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

2шт.

New part number.

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

11

612934R11

GUIDE

trip lever rope front

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 7/8" crg

1шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

12

ROPE, 3/8" sisal x 17-1/2 ft trip (dealer to purchase locally)

1шт.

13

612766R12

GUIDE

trip lever rope centre

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

1шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

14

519146R1

SPRING, trip lever

1шт.

15

608412R91

PAWL

ratchet wheel upper

1шт.

16

612949R1

SPACER, ratchet pawl upper

1шт.

24528R1

BOLT, 7/16 x 2-3/4" type 1 dld crg

1шт.

New part number.

1шт.

21796R1

WASHER

21/32 x 1 x 16 ga

2шт.

New part number.

1шт.

607891R1

WASHER

15/32 x 1 x 16 ga

1шт.

New part number.

1шт.

425-127

SLOTTED NUT,7/16"-14, G5

NUT, 7/16" slt

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

1шт.

17

612953R91

CROSSMEMBER, endgate top

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

CHAIN, endgate lift (order 1-CS-34 10 ft chain & reduce ro 23 links)

1шт.

Q3516

PIN

1/4 x 2" std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

19

612944R1

CROSSMEMBER, endgate middle

2шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

20

608405R1

ANGLE, endgate stop RH

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

21

612938R1

SPACER, endgate chain

8шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

8шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

LK-WASHER, 3/8"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

22

612945R1

CROSSMEMBER, endgate bottom

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

23

608404R1

ANGLE, endgate stop LH

1шт.

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

5/16 x 2-1/4"

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.
