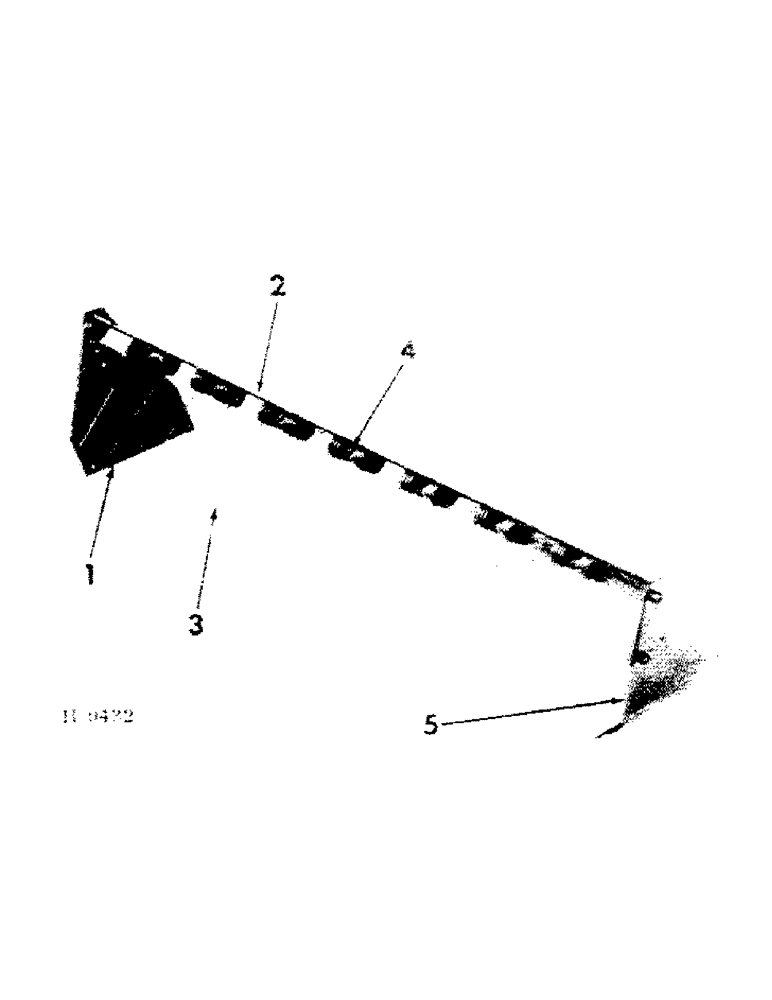

Запчасти Case IH 130 (H-23) - SPRING BAR ATTACHMENT

1

609338R1

SUPPORT, spg bar angle LH

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

3шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

2

609340R11

ANGLE, spg bar

1шт.

598813R1

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1", Gr 5

BOLT, 1/2 x 1" crg

4шт.

New part number.

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

3

R1007F

SPRING, bar

7шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4" crg

7шт.

New part number.

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

120376

NUT,5/16"-18, G5

7шт.

4

R3

ANTENNA

RETAINER, spg

7шт.

598804R1

CARRIAGE BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4", Gr 5

BOLT, 5/16 x 1-1/4" crg

7шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

7шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

7шт.

5

609339R1

SUPPORT, spg bar angle RH

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

1шт.

180078

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5/16 x 7/8"

2шт.

120376

NUT,5/16"-18, G5

3шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.
