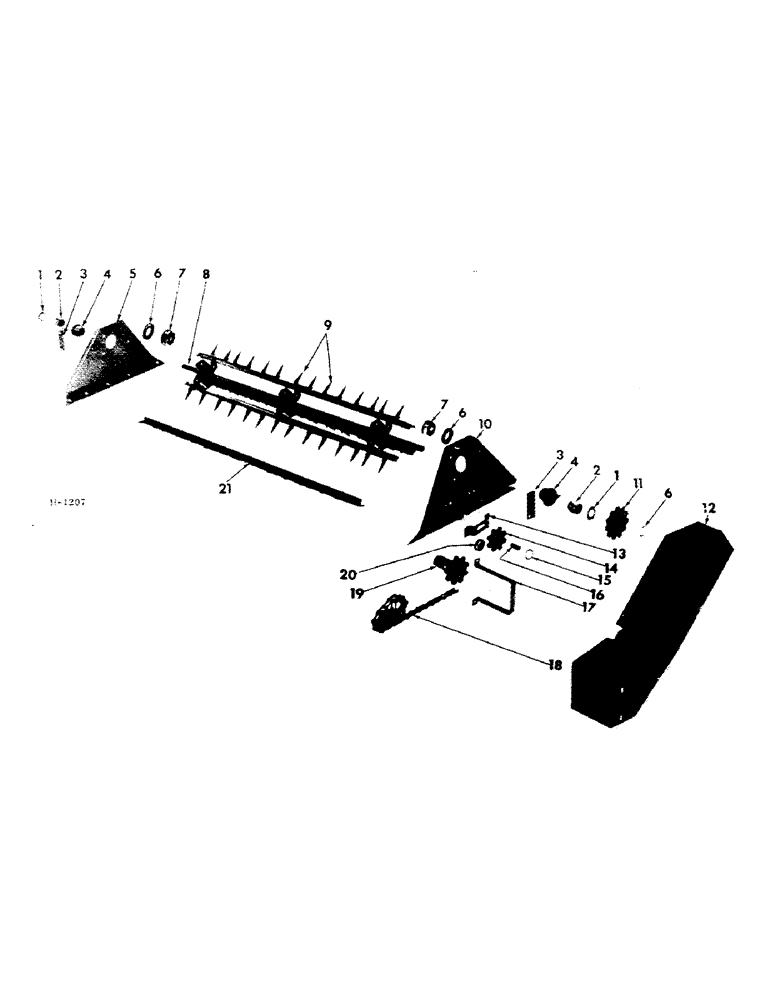

Запчасти Case IH 130 (H-22) - UPPER BEATER ATTACHMENT

1

20802R1

WASHER

1-9/32 x 2-1/2 x 11 ga

2шт.

2

619671R91

ROLLER BEARING,31.75mm ID x 47.63mm OD x 50.8mm W

upr beater shaft

2шт.

3

614553R1

HOUSING

BAR, brg housing stop

2шт.

598809R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 3/4", Gr 5

BOLT, 3/8 x 3/4" crg

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

4

614554R2

HOUSING

shaft brg

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

5

592708R1

SECTION, beater mounting LH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

New part number.

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

3шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

6

608700R1

WASHER

1-9/32 x 2 x 16 ga

8шт.

7

612867R1

COLLAR

upr beater shaft

2шт.

613971R1

SCREW, 3/8 x 5/16" hdls knurled cup-pt set

4шт.

8

592710R11

SHAFT, upr beater

1шт.

32-1632

COTTER PIN,1/4" x 2"

PIN, SPLIT (COTTER), 1/4" x 2"

2шт.

9

617506R1

TOOTH

beater double

28шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

56шт.

10

592709R1

SECTION, beater mounting RH

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

3шт.

New part number.

1шт.

598803R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 1", G5, Full Thd

BOLT, 5/16 x 1" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

11

592712R1

SPROCKET, 11T beater driven

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

12

592716R91

SHIELD, upr beater drive

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4"

5шт.

New part number.

1шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

5шт.

13

614539R1

SUPPORT, chain tightener

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

3347SB

SPROCKET, chain tightener

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

20181R1

BOLT, 1/2 x 3-1/4" type 1 crg

1шт.

New part number.

1шт.

312565R1

BUSHING

SPACER, tightener sprocket

1шт.

178374R1

WASHER

17/32 x 1-1/4 x 16 ga

3шт.

New part number.

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

15

12026R1

WASHER

17/32 x 1-1/4 x 16 ga

3шт.

16

592714R1

SPACER, tightener sprocket inner

1шт.

17

592720R11

SUPPORT, drive shield

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

20803R1

WASHER

13/32 x 1 x 11 ga

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

CHAIN, beater drive 1-1/2" pitch agricultural (for service order 1-569090R91, 10 ft chain, reduce to 37 links, add 1-567009R91, offset link & 1-567007R91, connecting link)

1шт.

19

592715R1

SPROCKET ASSY.

SPROCKET, 9T upr beater drive

1шт.

113879

KEY

5/16 x 1-1/4" Woodruff

1шт.

20

312565R1

BUSHING

SPACER, tightener sprocket

1шт.

21

619692R91

ANGLE, beater no. 1 (includes 14-106915, rivets & 7-617506R1, teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

619693R91

ANGLE, beater no. 2 (includes 14-106915, rivets & 7-617506R1, teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

619694R91

ANGLE, beater no. 3 (includes 14-106915, rivets & 7-619506R1, teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.

21

619695R91

ANGLE, beater no. 4 (includes 14-106915, rivets & 7-617506R1, teeth)

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

3шт.

120377

NUT,3/8" - 16, Gr 5

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

3шт.
