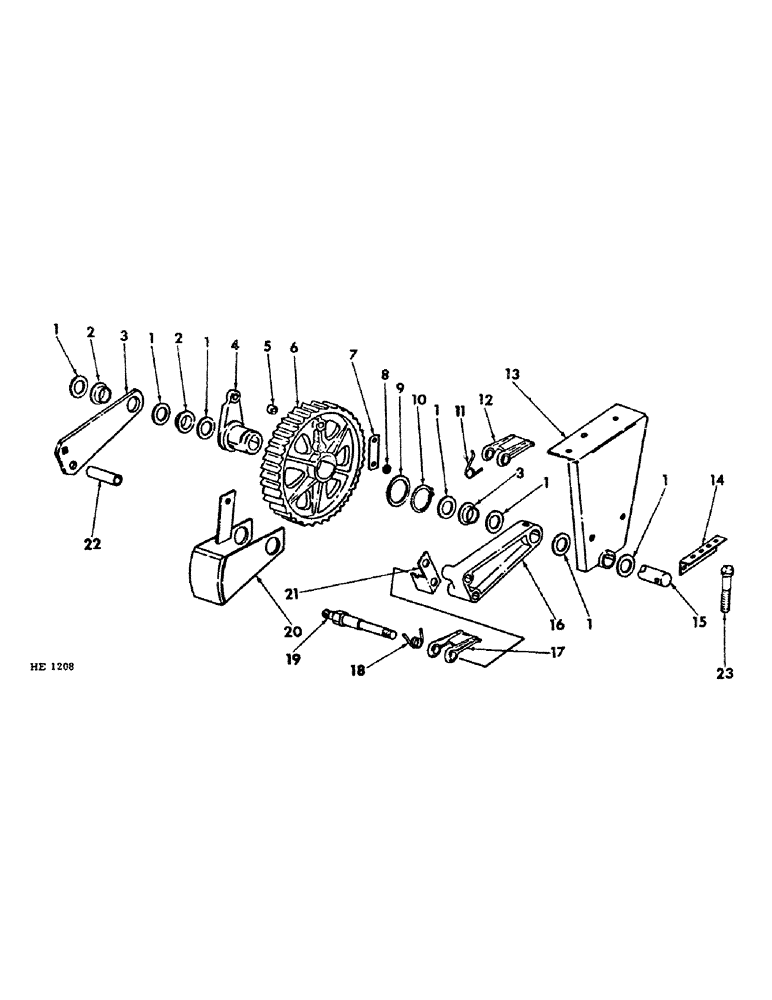

Запчасти Case IH 130 (H-19) - RATCHET WHEEL (SHEAR BOLT TYPE), (FOR USE ON MACHINES BUILT SEPTEMBER 1969 & SINCE)

1

608700R1

WASHER

1-9/32 x 2 x 16 ga

1шт.

2

617419R1

BUSHING

rocker arm support

3шт.

3

617470R1

SUPPORT, ratchet rocker arm

1шт.

617448R1

BUSHING, rocker arm

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT, 1/2 x 5-3/4" no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

599868R1

HUB, ratchet wheel

1шт.

596563R1

KEY

1/4 x 1/4 x 2-1/2" straight

1шт.

5

662555R1

BUSHING,8.46mm ID x 15.98mm OD x 12.83mm L

shear bolt

1шт.

6

599867R1

WHEEL

90T ratchet shear bolt

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, 5/16 x 2" (shear)

1шт.

599891R1

NUT

5/16"

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

7

599869R1

BAR

shear bolt retainer

1шт.

88542

BOLT,Hex, 1/4"-20 x 1/2", Gr 5

1/4 x 1/2"

1шт.

80682

LOCK WASHER,1/4"

Washer, Lock, 1/4"

1шт.

495-21031

WASHER,1/4"

5/16 x 3/4 x 18 ga

1шт.

8

702952R1

BUSHING, retainer bar

1шт.

9

612888R1

WASHER, wheel retaining

1шт.

10

644771R1

SNAP RING,#225, Ext

Ring, Snap, , wheel #225, Ext

1шт.

11

612872R1

SPRING

pawl holding

1шт.

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

1/4 x 2"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

12

617431R1

PAWL

holding

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

13

609283R92

SUPPORT, rear apron shaft LH

1шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FITTING, 5/16"

1шт.

180121

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

3/8 x 7/8"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

14

599885R1

ANGLE, shear bolt holder

1шт.

15

SHAFT, rear apron (for component parts refer to "rear apron shaft" in section H of this catalog)

1шт.

16

617422R1

ARM, ratchet pawl

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

1шт.

17

617431R1

PAWL

ratchet wheel

1шт.

18

5291SA

SPRING

ratchet pawl

1шт.

19

617513R1

STUD, ratchet arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

20

617651R91

SECTOR, feed control

1шт.

21

617492R1

HOLDER, pawl spg

1шт.

22

617448R1

BUSHING, rocker arm

1шт.

23

181620

SCREW,Hex, 5/16" - 24 x 2", Gr 5

BOLT, 5/16 x 2" special shear (4 extra bolts supplied)

1шт.
