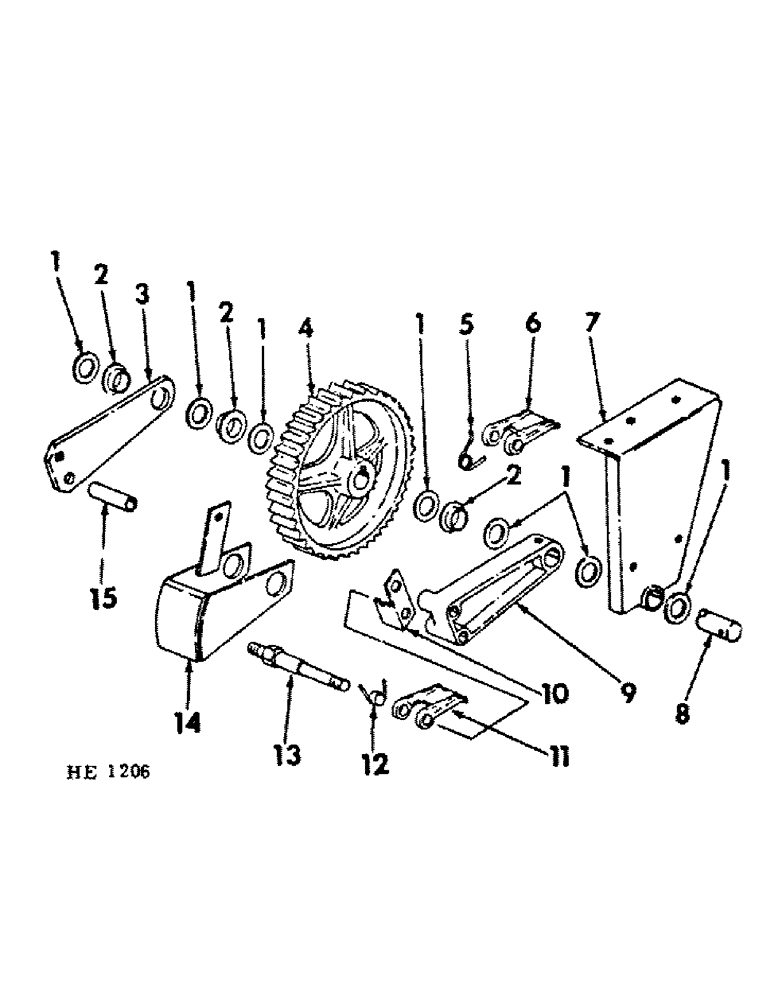

Запчасти Case IH 130 (H-18) - RATCHET WHEEL

1

608700R1

WASHER

1-9/32 x 2 x 16 ga shaft

7шт.

2

617419R1

BUSHING

sector & rocker support

3шт.

3

617470R1

SUPPORT, ratchet rocker arm

1шт.

617448R1

BUSHING, rocker arm

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT, 1/2 x 5-3/4" no. 3 plain plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

4

617415R1

WHEEL

90T ratchet (customer may wish to replace ratchet wheel w/new shear-bolt type ratchet wheel. Order 1-599866R91, ratchet wheel service package)

1шт.

596563R1

KEY

1/4 x 1/4 x 2-1/2" straight

1шт.

4

599866R91

1шт.

PACKAGE, shear bolt ratchet wheel service composed of: (1) bar 599869R1, (1) bolt 180016, (1) bolt 181620, (1) bushing 662555R1, (1) bushing 702952R1, (1) fitting 109461, (1) hub 599868R1, (2) lockwasher 120214, (1) lockwasher 120386, (1) nut 599891R1, (1) ring 644771R1, (1) washer 612888R1, (1) wheel 599867R1

1шт.

5

612872R1

SPRING

holding pawl

1шт.

180044

SPRING

1/4 x 2"

1шт.

124818

JAM NUT,Hex, 1/4" - 20, Gr 5

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

6

617431R1

PAWL

ratchet holding

1шт.

21782R1

WASHER

21/32 x 1-1/2 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

7

609283R92

SUPPORT, rear apron shaft LH

1шт.

271293

PULLEY

LUB-FITTING, 5/16"

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 7/8"

1шт.

180173

BOLT,Hex, 1/2" - 13 x 1", Gr 5

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

551177R1

WASHER

21/32 x 1-1/4 x 16 ga

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

8

619547R1

SHAFT

rear apron (for component parts refer to "rear apron shaft" in section H of this catalog)

1шт.

9

617422R1

ARM, ratchet pawl

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

1шт.

15745R1

PLOW BOLT,#3, 1/2" - 13 x 5 3/4", Gr 2

BOLT, 1/2 x 5-3/4" no. 3 plow

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

1шт.

120384

WASHER,1/2"

LOCK, 1/2"

1шт.

10

617492R1

HOLDER, pawl spg

1шт.

11

617431R1

PAWL

ratchet wheel

1шт.

12

5291SA

SPRING

ratchet wheel

1шт.

13

617513R1

STUD, ratchet arm

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

14

617651R91

SECTOR, feed control

1шт.

15

617448R1

BUSHING, rocker arm support

1шт.
