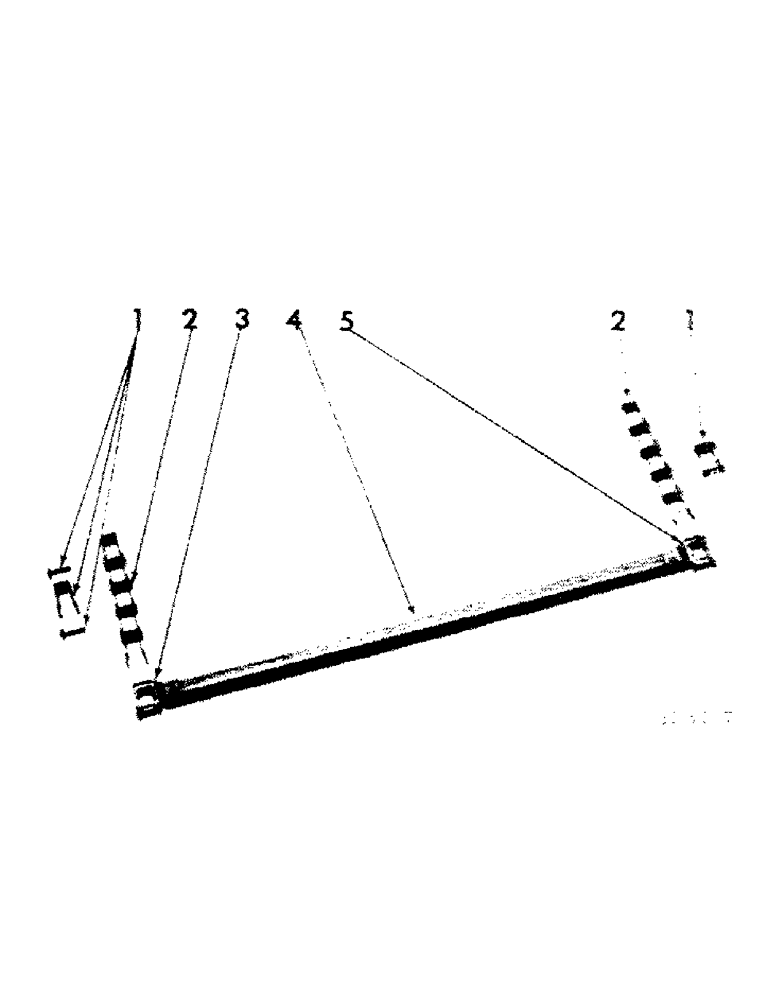

Запчасти Case IH 130 (H-17) - PRODUCT GRAPHIC
№
Артикул
Название
Примечание
Количество
609216R93
PACKAGE, product graphic service (composed of all product listed below)
1шт.
New part number.
1шт.
2752312R1
PRODUCT GRAPHIC, "International"
2шт.
New part number.
1шт.
2752018R1
PRODUCT GRAPHIC
"I.H."
3шт.
New part number.
1шт.
PRODUCT GRAPHIC, "warning" (for service order 1-609216R93, package) (NSS)
1шт.
PRODUCT GRAPHIC, "be careful" (for service order 1-609216R93, package) (NSS)
1шт.
PRODUCT GRAPHIC, "important" (for service order 1-609216R93, package) (NSS)
1шт.
PRODUCT GRAPHIC, "lubrication" (for service order 1-609216R93, package) (NSS)
1шт.
PRODUCT GRAPHIC, "130" model designation (for service order 1-609216R93, package) (NSS)
1шт.
PRODUCT GRAPHIC, "shear bolt" (for service order 1-609216R93, package) (NSS)
1шт.
594785R91
CHAIN, apron (parts listed below)
1шт.
1
594791R11
LINK, chain replacement (includes 594790R1, pins & 107763, pins)
1шт.
594790R1
PIN, link coupler
2шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
2шт.
2
CHAIN, apron LH or RH (for service of individual chain link, order 1-594791R11, link)
1шт.
3
594788R11
LINK
LH attaching (includes 594790R1, pins & 107763, pins)
15шт.
106915
RIVET,Tr Hd, 5/16" x 7/8"
5/16 x 7/8" truss-hd
15шт.
594790R1
PIN, link coupler
30шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
30шт.
4
594792R91
CROSSMEMBER, apron (includes 594788R11 & 594789R11, links and 106915, rivets)
15шт.
5
594789R11
LINK
RH attaching (includes 594790R1, pins & 107763, pins)
1шт.
106915
RIVET,Tr Hd, 5/16" x 7/8"
5/16 x 7/8" truss-hd
15шт.
594790R1
PIN, link coupler
30шт.
107763
COTTER PIN,1/8" x 5/8"
PIN, SPLIT (COTTER), 1/8" x 5/8"
30шт.
Выбрано товаров: 26
