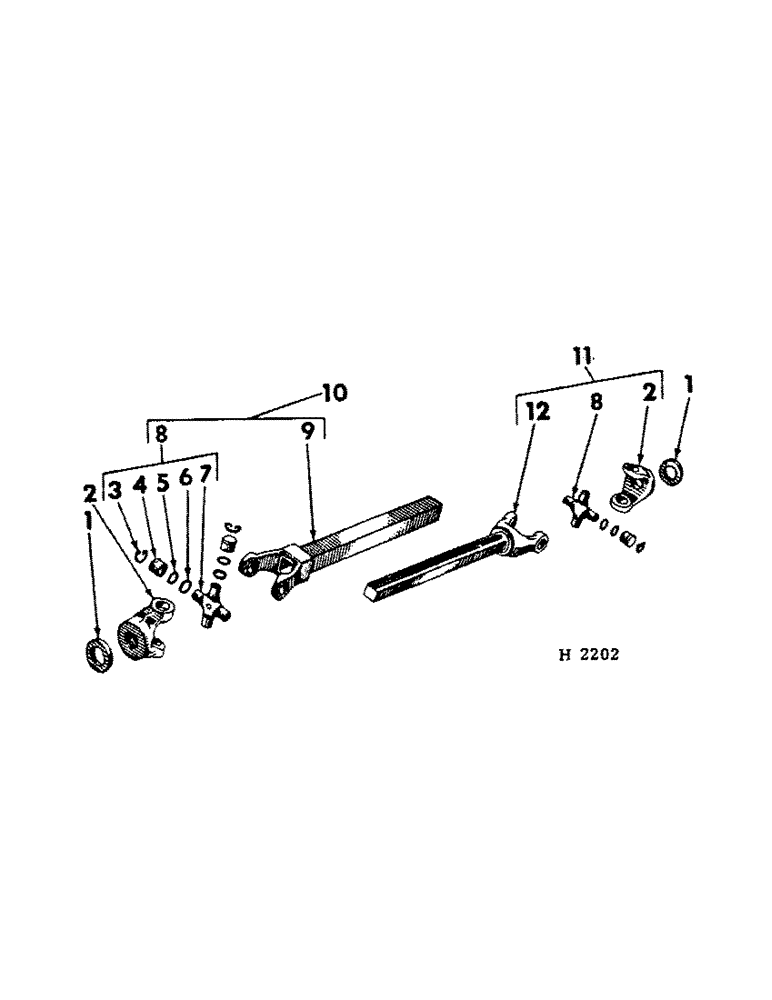

Запчасти Case IH 130 (H-15) - SIDE DRIVE UNIVERSAL ASSEMBLY (ROCKWELL-STANDARD)

1

B12219

WASHER

drive shaft knuckle

2шт.

2

452966R2

YOKE, 1" LH threaded

2шт.

3

454741R1

RING, center cross snap

8шт.

4

450776R1

CAP

BUSHING, center cross

8шт.

5

450778R1

WASHER

center cross cork

8шт.

6

450779R1

RETAINER

center cross cork washer

8шт.

7

CROSS, (order 1-454740R91, cross) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

2шт.

8

454740R91

CROSS

center composed of: (4) bushing 450776R1, (1) cross (NSS), (1) fitting 109460, (4) retainer 450779R1, (4) ring 454741R1, (4) washer 450778R1

2шт.

9

619680R91

YOKE & TUBE, front

1шт.

10

619678R91

JOINT, front half composed of: (1) cross 454740R91, (1) yoke 452966R2, (1) yoke & tube 619680R91

1шт.

11

619679R91

JOINT, rear half composed of: (1) cross 454740R91, (1) yoke 452966R2, (1) yoke & shaft 619681R91

1шт.

12

619681R91

YOKE & SHAFT, rear

1шт.
