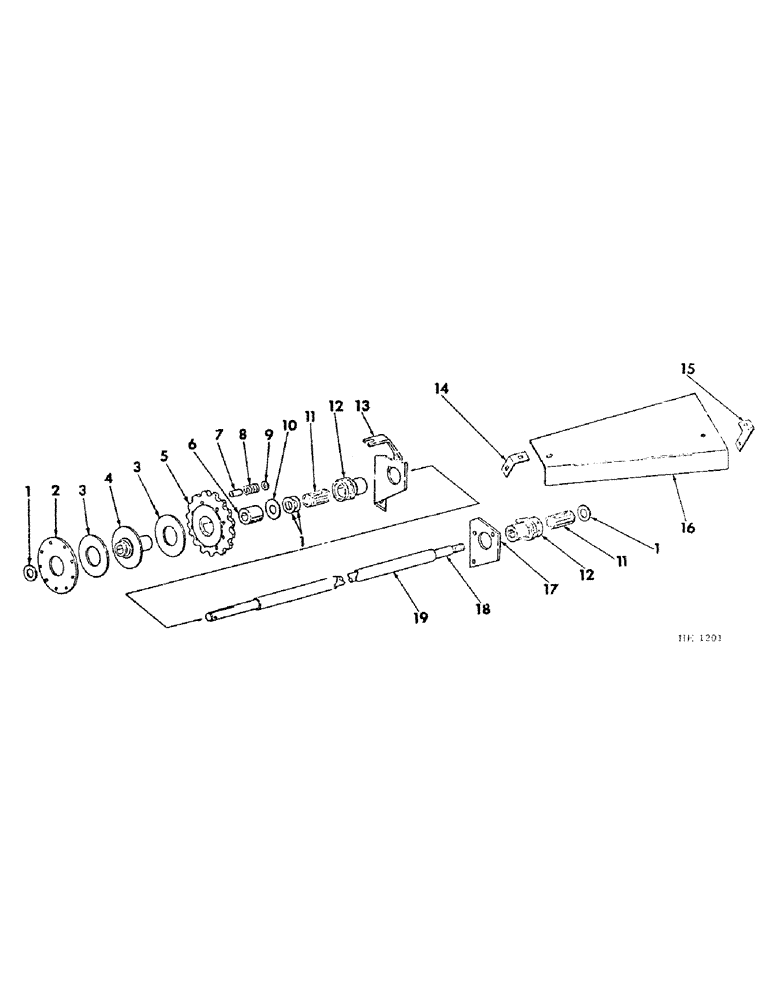

Запчасти Case IH 130 (H-14) - SIDE DRIVE CLUTCH AND SHAFT

1

21716R1

WASHER

1-5/32 x 1-3/4 x 16 ga

1шт.

New part number.

1шт.

2

608050R1

RETAINER

PLATE, clutch backing

1шт.

18511R1

BOLT,Short NK, 3/8"-16 x 3", G2

3/8 x 3" type 1 crg

9шт.

New part number.

1шт.

619856R1

WASHER

13/32 x 1 x 16 ga

9шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

9шт.

138489

LOCK WASHER,Ext Tooth, 3/8"

WASHER, LOCK, Ext Tooth, 3/8"

9шт.

3

617619R1

FACING

clutch

2шт.

4

612744R1

CLUTCH PLATE

PLATE, clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

5

608049R11

SPROCKET ASSY.

SPROCKET, clutch (includes 1-613752R1, bushing)

1шт.

6

613752R1

BUSHING

clutch sprocket

1шт.

7

613828R1

SPACER

slip clutch spg

9шт.

8

613827R1

SPRING

clutch pressure

9шт.

9

619856R1

WASHER

13/32 x 1 x 16 ga

9шт.

New part number.

1шт.

10

551771R1

WASHER, 1-5/32 x 2-1/2 x 16 ga plain

1шт.

11

619670R91

NEEDLE BEARING

BEARING, drive shaft front & rear

2шт.

12

619539R1

CAGE

HOUSING, shaft front & rear brg

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow (front)

1шт.

219-31

LUBE NIPPLE,30 Degree Elbow, 1/8" - 27 NPTF

LUB-FITTING, 1/8" - 30 degree elbow (rear)

1шт.

13

613831R91

SUPPORT, drive shaft front brg

1шт.

113-233

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

1шт.

New part number.

1шт.

434-524

CARRIAGE BOLT,Short NK, 5/16"-18 x 1 1/2", G5

BOLT, 5/16 x 1-1/2" crg

1шт.

New part number.

1шт.

634979R1

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1 1/2"

BOLT, 3/8 x 1-1/2" crg

1шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

14

619649R1

ANGLE, universal shield front support

1шт.

495967R1

CARRIAGE BOLT,Short NK, 3/8"-16 x 1", G5, Full Thd

BOLT, 3/8 x 1" crg

1шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

120377

NUT,3/8" - 16, Gr 5

1шт.

15

609294R1

SUPPORT, universal shield rear

1шт.

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

3/8 x 3/4"

1шт.

New part number.

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

1шт.

16

609292R1

SHIELD, side drive universal

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 3/4" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

619855R1

WASHER

11/32 x 3/4 x 16 ga

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

17

619574R1

BLOCK, rear brg support

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

2шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

18

613738R1

SHAFT, side drive

1шт.

432-1232

COTTER PIN,3/16" OD x 2" L

Pin, Split (Cotter), 3/16" x 1 3/4"

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

19

619663R1

TUBE, drive shaft shield

1шт.
