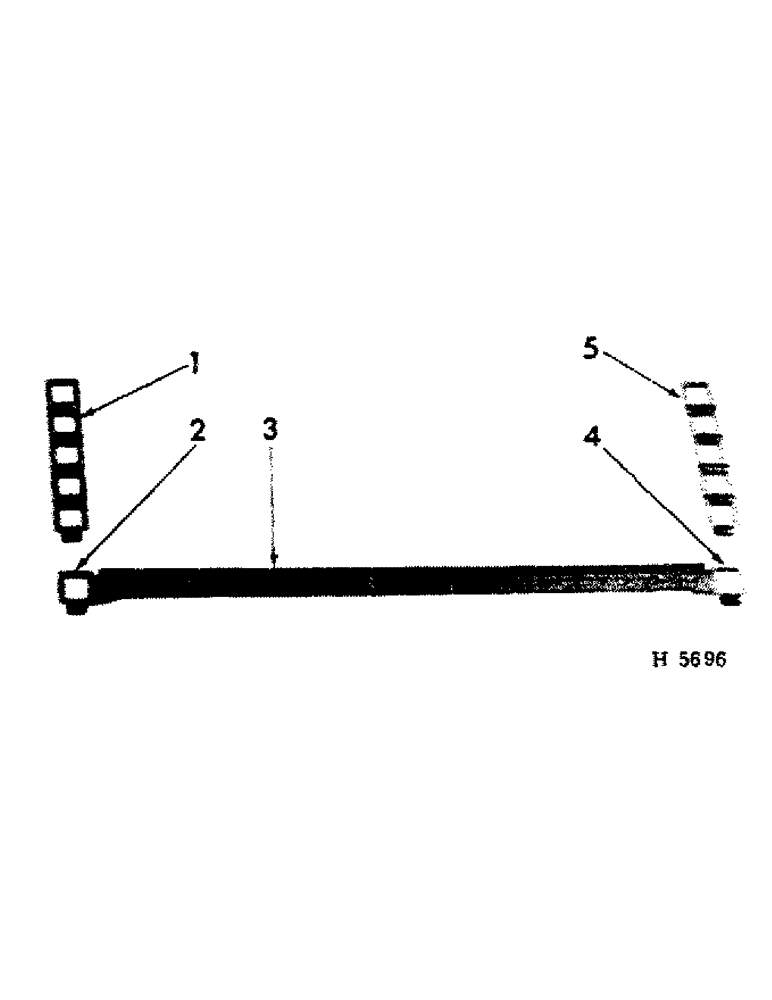

Запчасти Case IH 130 (H-13) - APRON CHAIN (REGULAR - STANDARD TYPE)

606419R91

CHAIN, apron (parts listed below)

1шт.

1

CHAIN, apron RH (order 2-CSXH 10 ft chain, and when using 15-613787R11 attaching links, reduce the chains to 75 links. However, if using 15-609279R1, attaching links, reduce the chains to 90 links)

1шт.

2

613787R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, attaching LH (opt w/609279R1, link)

15шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

2

609279R1

LINK, attaching LH (opt w/613787R11, link)

15шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

3

606422R91

MEMBER

CROSSMEMBER, apron (includes 1-613788R11, link, 1-613788R11, link & 2-106915, rivets) (opt w/609281R91, crossmember)

15шт.

3

609281R91

CROSSMEMBER, apron (includes 1-609279R1, link, 1-609280R1, link & 2-106915, rivets) (opt w/606422R91, crossmember)

15шт.

4

613788R11

LINK ASSY.,67 Links x 58.75mm = 3936.25mm

LINK, attaching RH (opt w/609280R1, link)

15шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

4

609280R1

LINK, attaching RH (opt w/613788R11, link)

15шт.

106915

RIVET,Tr Hd, 5/16" x 7/8"

5/16 x 7/8" truss-hd

15шт.

5

CHAIN, apron drag LH (order 2-CS-67XH 10 ft chain, and when using 15-613788R11, attaching links, reduce the chains to 75 links, however, if using 15-609280R1, attaching links, reduce the chains to 90 links)

1шт.
