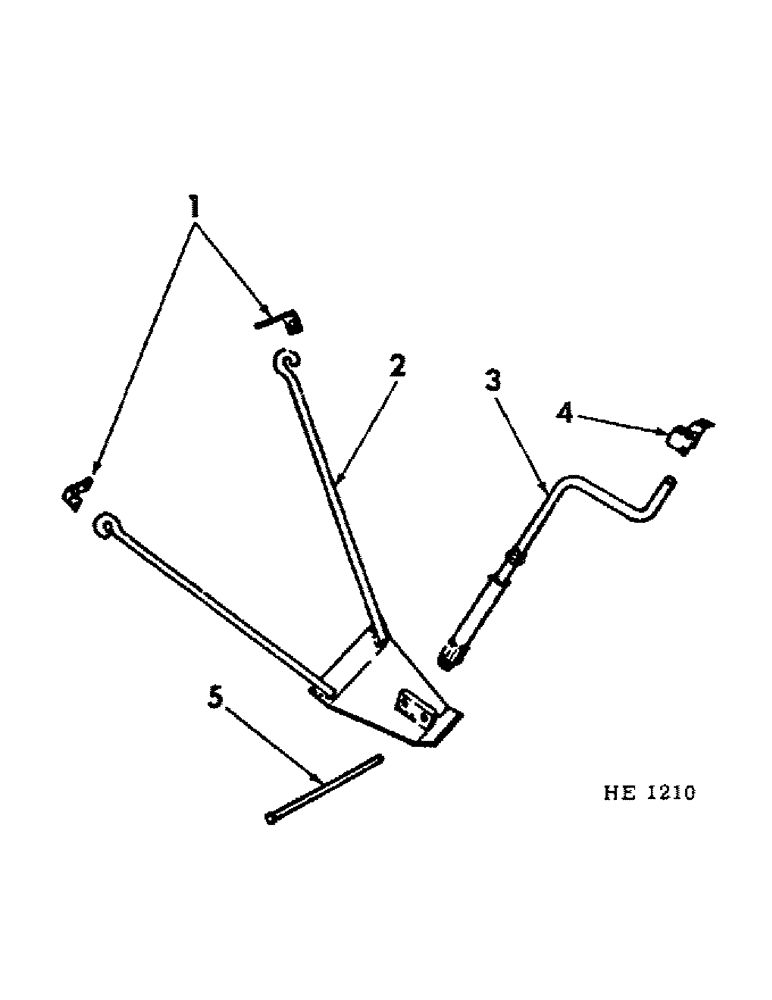

Запчасти Case IH 130 (H-11) - HITCH STAND

1

619705R1

ANGLE, hitch pivot

2шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" mach

4шт.

New part number.

1шт.

120377

NUT,3/8" - 16, Gr 5

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

2

619707R91

STAND, lift jack

1шт.

3

619713R92

SCREW, hitch lifting

1шт.

126098

FITTING

LUB-FITTING, 5/16" drive

1шт.

PO20130

AXLE PIN,3/4" x 2 1/8"

PIN, 3/4 x 2-1/8" std-hd-dld

1шт.

Q3501

WASHER

25/32 x 1-1/4 x 16 ga

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

4

613130R1

CLIP, stand lifting screw

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.

598802R1

CARRIAGE BOLT,Short NK, 5/16"-18 x 3/4", G5, Full Thd

BOLT, 5/16 x 5/8" crg

2шт.

New part number.

1шт.

120376

NUT,5/16"-18, G5

2шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

New part number.

1шт.

5

619706R1

PIN, hitch stand hold-up

1шт.

591107R1

COTTER PIN

C-PIN, quick-attachable

1шт.
