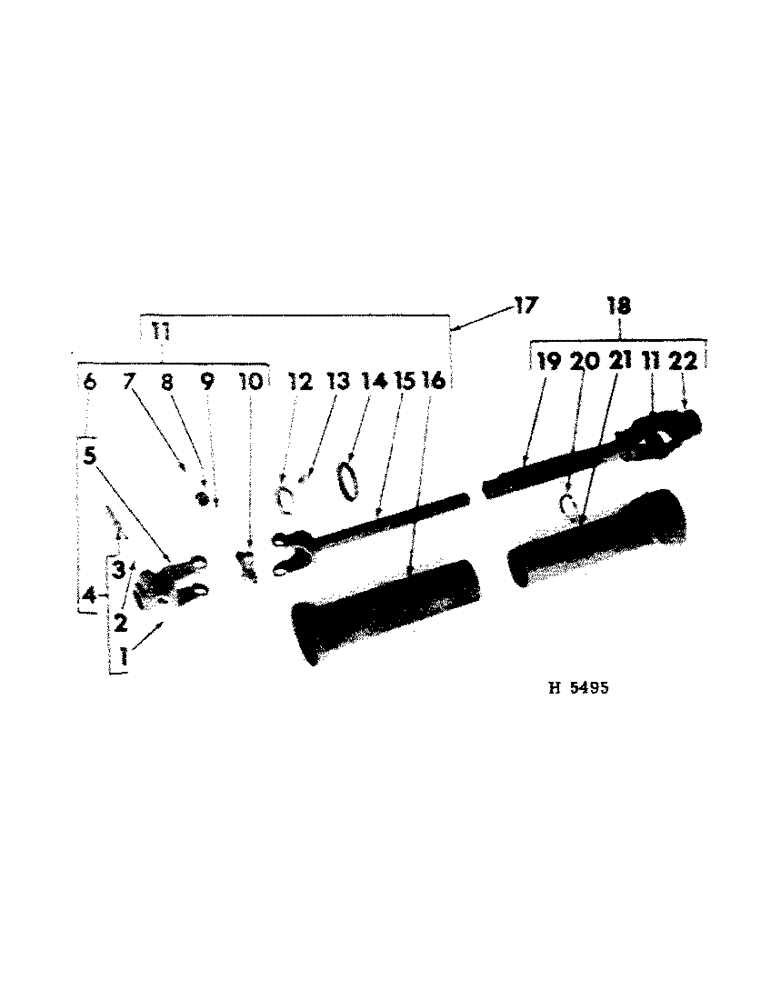

Запчасти Case IH 130 (H-09) - FRONT DRIVE UNIVERSAL ASSEMBLY (1000 RPM) (ROCKWELL-STANDARD

1

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

yoke lk pin

1шт.

2

455347R1

VALVE SPRING

SPRING, yoke lk pin

1шт.

3

PIN, lk (for service order 1-630391R11, pin) (NSS)

1шт.

4

630391R11

PIN, yoke lk (includes 1-455347R1, spring & 1-661406R1, washer)

1шт.

5

YOKE, (for service order 1-613431R91, yoke) (NSS)

1шт.

6

613431R91

YOKE, quick-detachable (includes pin, 630391R11)

1шт.

7

661657R1

RING

center cross snap

8шт.

8

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

center cross needle

8шт.

9

661656R1

SEAL, center cross cork oil

8шт.

10

CROSS, (for service order 1-659262R91 cross) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

1шт.

11

659262R91

U-JOINT SPIDER

CROSS, universal center composed of: (1) cross (NSS), (4) cup 661655R91, (1) fitting 109460, (4) ring 661657R1, (4) seal 661656R1

1шт.

12

613436R1

CLAMP

RING, universal snap

2шт.

13

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

universal thrust

2шт.

14

461346R1

BEARING

nylon

2шт.

15

613433R91

YOKE & SHAFT, front

1шт.

16

613435R1

SHIELD, front outer

1шт.

17

613429R91

JOINT, front half composed of: (1) bearing 461346R1, (1) cross 659262R91, (1) ring 613436R1, (1) shield 613435R1, (1) washer 613437R1, (1) yoke 613431R91, (1) yoke & shaft 613433R91

1шт.

18

613430R91

JOINT, rear half composed of: (1) bearing 463346R1, (1) bushing 613439R1, (1) cross 659262R91, (1) ring 613436R1, (1) shield 613434R1, (1) washer 613437R1, (1) yoke 580036R1, (1) yoke & tube 613438R91

1шт.

19

613438R91

YOKE & TUBE, rear

1шт.

20

613439R1

BRACKET

BUSHING, tube support

1шт.

21

613434R1

SHIELD, rear inner

1шт.

22

580036R1

YOKE, threaded rear

1шт.

B12219

WASHER

rear knuckle

1шт.
