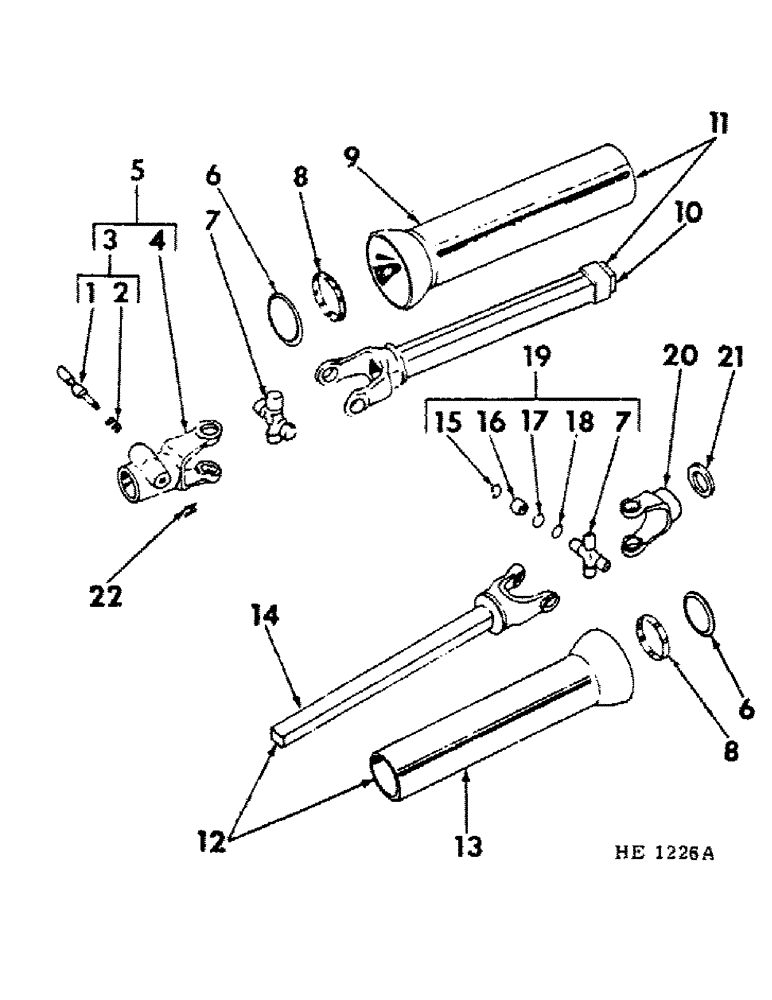

Запчасти Case IH 130 (H-07) - FRONT DRIVE UNIVERSAL ASSEMBLY (540 RPM) (ROCKWELL-STANDARD)

1

PIN, yoke lk (order 1-455346R21, pin) (NSS)

1шт.

2

455347R1

VALVE SPRING

SPRING, yoke lk pin

1шт.

3

455346R21

PIN

yoke lk (includes 1-455347R1, spring & 1-661406R1, washer)

1шт.

4

YOKE, (order 1-455344R91, yoke) (NSS)

1шт.

5

455344R91

YOKE, quick-detachable (includes 1-455346R21, pin)

1шт.

6

662589R1

THRUST WASHER

front & rear shield thrust

2шт.

7

CROSS, (order 1-454740R91, cross) (NSS)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8" - 65 degree elbow

1шт.

8

662598R91

BEARING

shield ball

2шт.

9

619858R91

SHIELD

front outer

1шт.

10

619397R91

YOKE

& TUBE, front

1шт.

11

619396R91

JOINT

front half composed of (1) bearing 662598R91, (1) cross 454740R91, (1) shield 619858R91, (1) washer 662589R1, (1) yoke 455344R91, (1) yoke & tube 619397R91

1шт.

12

619325R91

JOINT

rear half composed: (1) bearing 662598R91, (1) cross 454740R91, (1) shield 619859R91, (1) washer 663589R1, (1) yoke 617663R1, (1) yoke & shaft 617308R91

1шт.

13

619859R91

SHIELD

rear inner

1шт.

14

619398R91

SHAFT

YOKE & SHAFT, rear

1шт.

15

454741R1

RING, centre cross snap

8шт.

16

450776R1

CAP

BUSHING, centre cross

8шт.

17

450778R1

WASHER

center cross cork

8шт.

18

450779R1

RETAINER

cork washer

8шт.

19

454740R91

CROSS

ASSEMBLY, center composed of: (4) bushing 450776R1, (1) cross (NSS), (1) fitting 109460, (4) retainer 450779R1, (4) ring 454741R1, (4) washer 450778R1

1шт.

20

617663R1

YOKE, threaded rear

1шт.

21

B12219

WASHER

rear knuckle

1шт.

22

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

front yoke lk pin

1шт.
