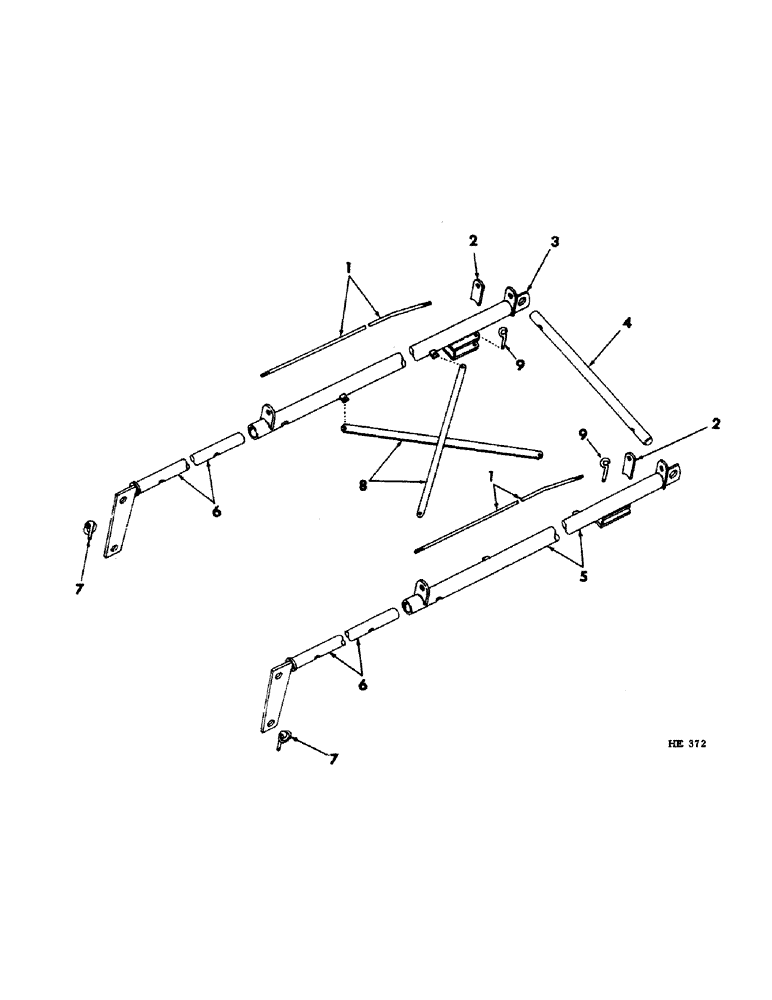

Запчасти Case IH 1150 (O-8) - PUMP LIFT MECHANISM

1

597643R1

ROD, lift arm truss

2шт.

280954

NUT,3/4"-10, G5

4шт.

2

597615R1

BAR, truss rod support

2шт.

3

597620R1

ARM, lift LH

1шт.

4

597616R1

ROD, lift arm stop

1шт.

591107R1

COTTER PIN

C-PIN, 5/32" quick-attachable

4шт.

5

597621R1

ARM, lift RH

1шт.

6

597617R1

EXTENSION, lift arm

2шт.

PG146

PIN

5/8 x 3" std-hd-dld

2шт.

591107R1

COTTER PIN

C-PIN, 5/32" quick-attachable

2шт.

7

517758R91

SPLIT PIN/SAFETY PIN

PIN, spring clip

2шт.

8

597619R1

BAR, lift arm tie

1шт.

180145

BOLT,Hex, 7/16" - 14 x 1", Gr 5

7/16 x 1" C-Z

4шт.

271501

SOCKET

NUT, 7/16" C-Z

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

9

597618R1

PIN, lift arm retaining

2шт.
