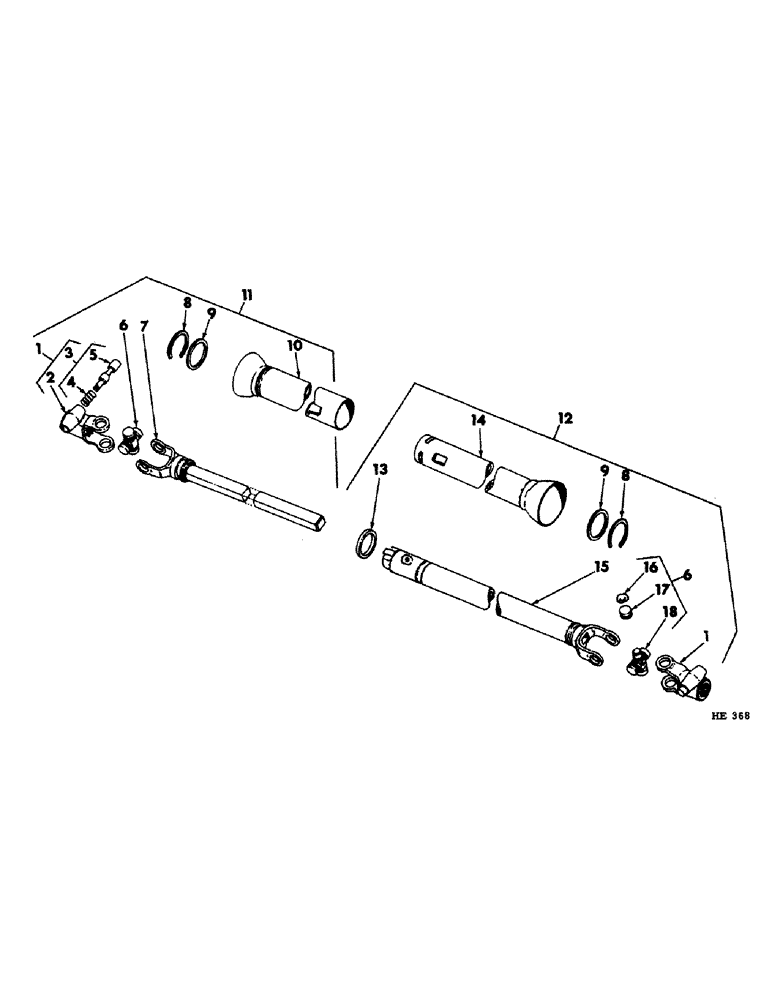

Запчасти Case IH 1150 (O-7) - POWER TAKE OFF UNIVERSAL (1000 RPM)

1

597588R91

YOKE, quick-detachable (includes 597589R91, lock pin service package)

2шт.

2

NSS

NOT SOLD SEPARAT

YOKE, quick-detachable (order 597588R91)

2шт.

3

597589R91

KIT

PACKAGE, yoke lock pin service composed of: (1) pin 597590R1, (1) spring 597564R1

2шт.

4

597564R1

SPRING

yoke lock pin

2шт.

5

597590R1

PIN, yoke lock

2шт.

6

597560R91

CROSS, joint center composed of: (1) cross (NSS), (4) bearing 597662R1, (4) ring 597663R1, (1) fitting 109460

2шт.

7

597587R1

YOKE & SHAFT, joint

1шт.

8

597559R1

RETAINER

nylon bearing

2шт.

9

597558R1

BEARING, nylon

2шт.

10

597557R1

SHIELD, joint outer

1шт.

11

597586R91

JOINT, pto front half composed of: (1) yoke w/shaft 597587R1, (1) shield 597557R1, (1) bearing 597558R1, (1) retainer 597559R1, (1) cross 597560R91, (1) yoke 597588R91

1шт.

12

597591R91

JOINT, pto rear half composed of: (1) yoke & tube 597592R1, (1) shield 597567R1, (1) support 597568R1, (1) bearing 597558R1, (1) retainer 597559R1, (1) cross 597560R91, (1) yoke 597588R91 1.375" ID, 2.125" OD, 50.875" Length

1шт.

13

597568R1

SUPPORT

inner shield

1шт.

14

597567R1

SHIELD, joint inner

1шт.

15

597592R1

YOKE & TUBE, joint

1шт.

16

597663R1

RING, bearing retaining

8шт.

17

597662R1

BEARING, center cross

8шт.

18

NSS

NOT SOLD SEPARAT

CROSS, center (order 597560R91)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8"- 65 deg.

2шт.
