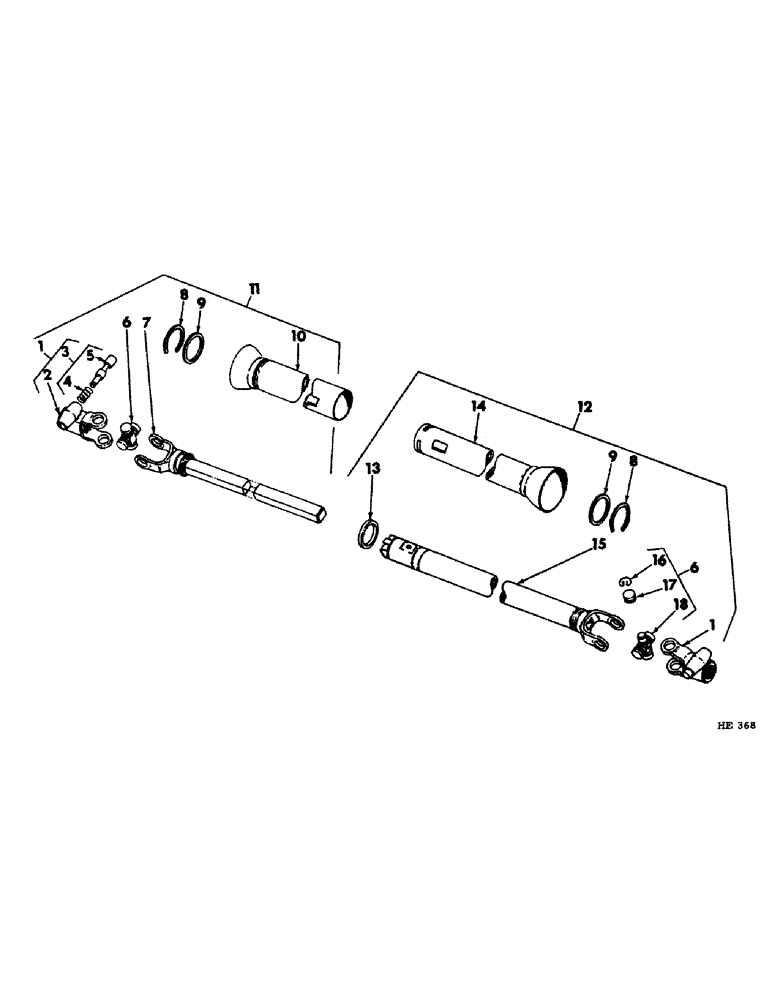

Запчасти Case IH 1150 (O-6) - POWER TAKE OFF UNIVERSAL (540 RPM)

1

597561R91

YOKE, quick-detachable (includes 597562R91, lock pin service package)

2шт.

2

NSS

NOT SOLD SEPARAT

YOKE, quick-detachable (order 597561R91)

2шт.

3

597562R91

PACKAGE, yoke lock pin service composed of: (1) pin 597563R1, (1) spring 597564R1

2шт.

4

597564R1

SPRING

yoke lock pin

2шт.

5

597563R1

PIN

yoke lock

1шт.

6

597560R91

CROSS, joint center composed of: (1) cross (NSS), (4) bearing 597662R1, (4) ring 597663R1, (1) fitting 109460

2шт.

7

597556R1

YOKE & SHAFT

1шт.

8

597559R1

RETAINER

nylon bearing

2шт.

9

597558R1

BEARING, nylon

2шт.

10

597557R1

SHIELD, joint outer

1шт.

11

597555R91

JOIN, pto front half composed of: (1) yoke w/shaft 597556R1, (1) shield 597557R1, (1) bearing 597558R1, (1) retainer 597559R1, (1) cross 597560R91, (1) yoke 597561R91

1шт.

12

597565R91

JOINT, pto rear half composed of: (1) yoke & tube 597566R1, (1) shield 597567R1, (1) support 597568R1, (1) bearing 597558R1, (1) retainer 597559R1, (1) cross 597560R91, (1) yoke 597561R91 2.125" OD, 51.375" Length

1шт.

13

597568R1

SUPPORT

inner shield

1шт.

14

597567R1

SHIELD, joint inner

1шт.

15

597566R1

YOKE & TUBE, joint 1.99" Diameter, 46.062" Length

1шт.

16

597663R1

RING, bearing retaining

8шт.

17

597662R1

BEARING, center cross

8шт.

18

NSS

NOT SOLD SEPARAT

CROSS, center (order 597560R91)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FITTING, 1/8"- 65 deg.

2шт.
