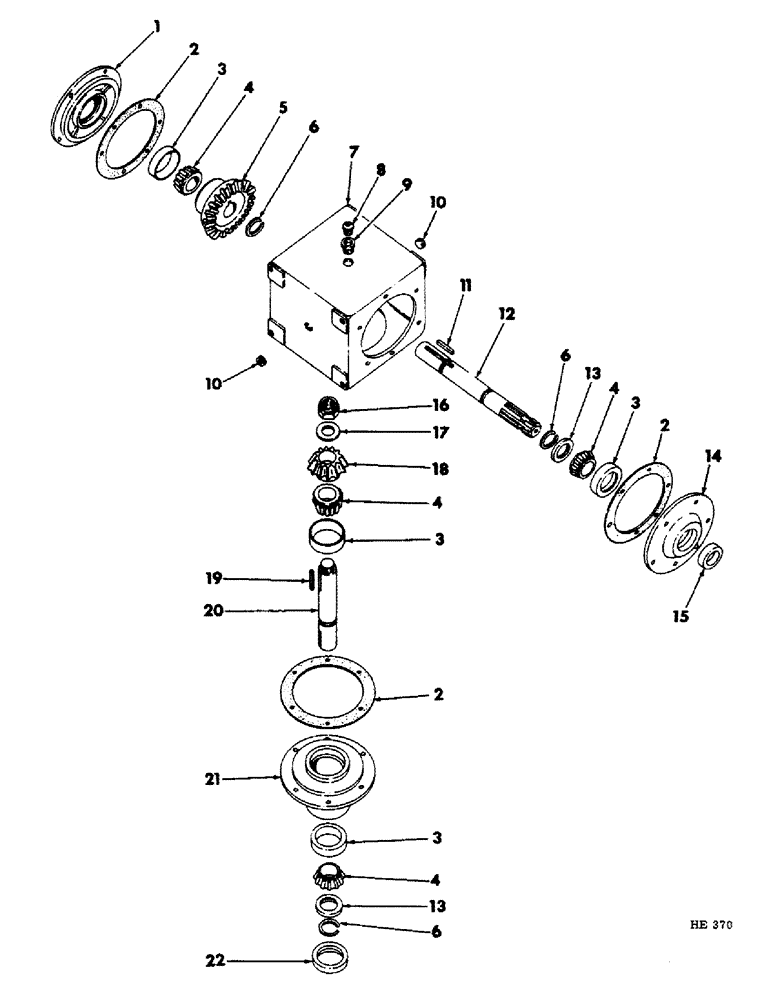

Запчасти Case IH 1150 (O-4) - GEAR CASE

597569R91

CASE, pump drive gear, 540 RPM (composed of all parts listed except as noted)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

597593R91

CASE, pump drive gear 1000 RPM (composed of all parts listed except as noted)

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

1

597572R1

CAP, gear case closed end

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z

6шт.

2

597574R1

GASKET, end cap and pinion housing

1шт.

3

618024R1

BEARING CUP,65.113mm OD x 13.97mm W

Input and output shaft

4шт.

4

618023R91

BEARING ASSY,34.93mm ID x 18.2mm W

CONE, input and output shaft

4шт.

5

597579R1

GEAR, input shaft (Note A)

1шт.

5

597596R1

GEAR, input shaft (Note B)

1шт.

6

597578R1

RING, input and output shaft snap

3шт.

7

597570R1

CASE, gear

1шт.

8

18437R1

FITTING, 1/8" str pressure relief

1шт.

9

444337

BUSHING, 1/2" automotive pipe reducer

1шт.

10

444703

PLUG,Hex Soc, 1/2"-14

1/2" hex-soc automotive pipe

2шт.

11

597580R1

KEY, input shaft gear

1шт.

12

597575R1

SHAFT, gear case input (Note A)

1шт.

12

597594R1

SHAFT, gear case input (Note B)

1шт.

13

597577R1

SPACER, input shaft bearing (Note A)

1шт.

13

597595R1

SPACER, input shaft bearing (Note B)

1шт.

14

597571R1

CAP, gear case open end

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z

6шт.

15

597576R91

SEAL, input shaft oil

1шт.

16

19256R1

LOCK NUT,1"-14, G5

NUT, 1" nylon insert

1шт.

17

615227R1

WASHER

1-1/32 x 1-3/4 x 11 ga

1шт.

18

597584R1

GEAR, output shaft (Note A)

1шт.

18

597598R1

GEAR, output shaft (Note B)

1шт.

19

597585R1

KEY, output shaft gear

1шт.

20

597581R1

SHAFT, gear case output (Note A)

1шт.

20

597597R1

SHAFT, gear case output (Note B)

1шт.

21

597573R1

HOUSING, pinion

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z

6шт.

22

597582R91

SEAL, output shaft oil (opt w/597583R91)

1шт.

22

597583R91

SEAL, output shaft oil (opt w/597582R91)

1шт.
