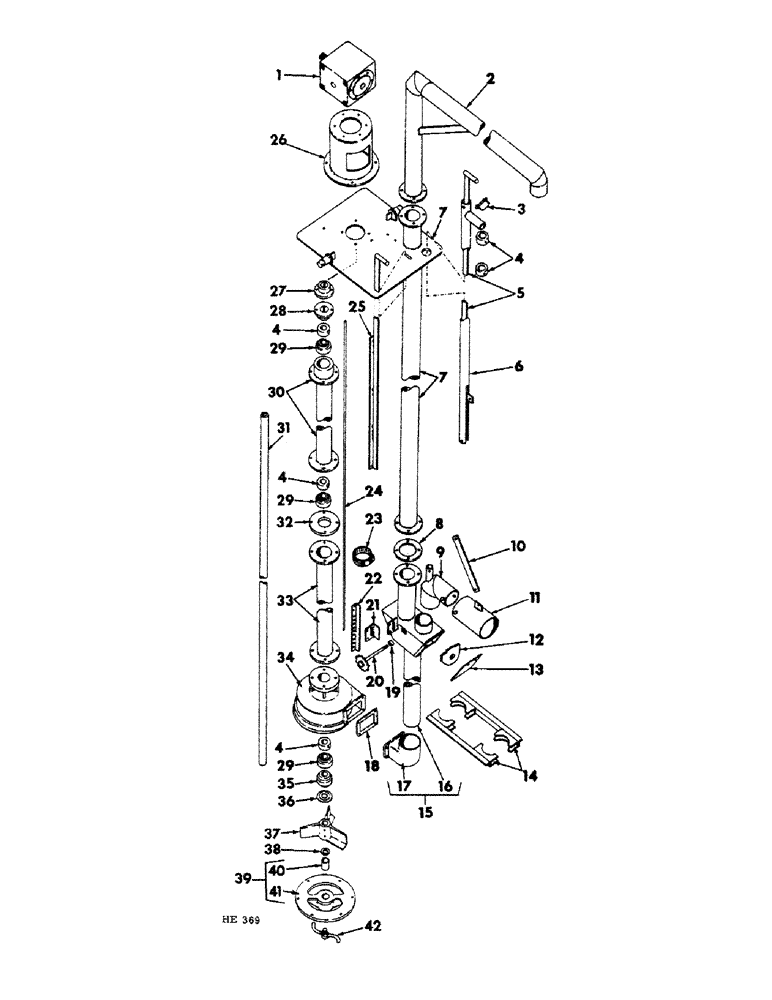

Запчасти Case IH 1150 (O-2) - PUMP

1

597569R91

CASE, 540 RPM gear (for component parts refer to "gear case")

1шт.

1

597593R91

CASE, 1000 RPM gear (for component parts refer to "gear case")

1шт.

180126

BOLT,Hex, 3/8" - 16 x 1 1/2", Gr 5

3/8 x 1-1/2" C-Z

6шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

6шт.

2

597520R1

PIPE, pump upper outlet

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8" C-Z

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

3

597605R1

PIN, deflector handle lock

1шт.

4

455112R11

COLLAR

W/SET SCREW, drive shaft & swivel nozzle locking (Note A)

4шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

4шт.

4

455112R11

COLLAR

W/SET SCREW, drive shaft & swivel nozzle locking (Note B)

5шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

5шт.

5

597603R1

HANDLE, swivel nozzle deflector (Note A)

1шт.

5

597604R1

HANDLE, swivel nozzle deflector (Note B)

1шт.

6

597523R1

HANDLE, swivel nozzle (Note A)

1шт.

6

597602R1

HANDLE, swivel nozzle (Note B)

1шт.

180130

BOLT,Hex, 3/8" - 16 x 2", Gr 5

3/8 x 2" C-Z

1шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, 3/8" cd-pltd nylon insert

1шт.

7

597504R1

BODY, pump

1шт.

8

597509R1

GASKET, diversion box upper

1шт.

9

597518R1

NOZZLE, recirculating swivel

1шт.

10

597524R1

BAR, deflector control

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1" C-Z

2шт.

17044R1

LOCK NUT,3/8"-16, GB

NUT, 3/8" cd-pltd nylon insert

2шт.

11

597519R1

DEFLECTOR, swivel nozzle

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2" C-Z

2шт.

12

597530R1

GATE, diversion box

1шт.

13

597517R1

COVER, diversion box

1шт.

436767

SCREW, no. 12 x 1/2" C-Z slt pan-hd

2шт.

225-14112

NUT,#12-24

no. 12 C-Z

2шт.

492-11012

LOCK WASHER,#12

Washer, Lock, #12

2шт.

14

597516R1

CLAMP, diversion box stiffener

2шт.

215303

BOLT,Hex, 1/4" - 20 x 6", Gr 5

1/4 x 6" C-Z

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

15

597513R11

BOX, pump diversion (includes 597606R1, elbow) (Note A)

1шт.

15

597514R11

BOX, pump diversion (includes 597606R1, elbow) (Note B)

1шт.

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

1/4 x 7/8" C-Z

4шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" C-Z

4шт.

120375

NUT,Hex, 1/4" - 20, Gr 5

4шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

16

BOX, diversion (order 597513R11 for 7 ft size of 597514R11 for 9 ft size) (NSS)

1шт.

17

597606R1

ELBOW, bowl outlet

1шт.

180124

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3/8 x 1-1/4" C-Z

4шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

18

597515R1

GASKET, diversion box lower

1шт.

19

72696R1

SHOCK ABSORBER

SPACER, gear shaft rubber

2шт.

20

597528R1

SHAFT W/GEAR, diversion box

1шт.

20033R1

LOCK NUT

NUT, 5/8" cd-pltd nylon insert

1шт.

21

597527R1

ANGLE, diversion box shim

1шт.

180077

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

5/16 x 3/4" C-Z

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16" zn-pltd nylon insert

2шт.

22

597526R1

ANGLE, diversion box rack

1шт.

88574

BOLT,Hex, 5/16" - 18 x 1/2", Gr 5, Full Thd

2шт.

231-1445

NUT,5/16"-18, GB

NUT, 5/16" zn-pltd nylon insert

2шт.

23

49335H

EXCITER

CLAMP, lubrication tube (Note A)

2шт.

23

49335H

EXCITER

CLAMP, lubrication tube (Note B)

4шт.

24

597521R1

TUBE, stem bearing lubrication (Note A) 1" OD, 102" Length

1шт.

24

597522R1

TUBE, stem bearing lubrication (Note B)

1шт.

222-502

TUBE NUT,7/16"-24

NUT, lubrication tube

2шт.

257523R1

HYD CONNECTOR,1/8" NPT x 7/16" - 16 ORB

CONNECTOR, upper lubrication tube female

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

25

592525R1

HANDLE, diversion box control (Note A)

1шт.

25

597601R1

HANDLE, diversion box control (Note B)

1шт.

26

597505R1

STAND, gear case

1шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4" C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

27

597533R1

COUPLING, drive shaft upper (Note C)

1шт.

Q1443

KEY,5/16" Sq x 1 1/2", Par

5/16 sq x 1-1/2" parallel

1шт.

21075R1

SCREW, no. 10 x 2-3/4" hdls cup-pt set

1шт.

27

597609R1

COUPLING, drive shaft upper (Note D)

1шт.

313517R1

KEY,1/2" Sq x 1 1/2", Par

1/2 sq x 1-1/2" parallel

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

1шт.

28

597534R1

COUPLING, drive shaft lower (Note C)

1шт.

28

597610R1

COUPLING, drive shaft lower (Note D)

1шт.

Q63

KEY,3/8" Sq x 1 1/2", Par

3/8 sq x 1-1/2" parallel

1шт.

21075R1

SCREW, no. 10 x 2-3/4" hdls cup-pt set

1шт.

18656R11

BOLT W/NUT, 1/4 x 1-1/4" C-Z

2шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

29

597536R91

BEARING

drive shaft upper and lower (Note A)

2шт.

29

597536R91

BEARING

drive shaft upper center and lower (Note B)

3шт.

30

597506R1

STEM, pump (Note A)

1шт.

30

597608R1

STEM, pump (Note B)

1шт.

180177

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 5

1/2 x 1-1/2" C-Z

4шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

4шт.

31

597531R1

SHAFT, pump drive (Note A)

1шт.

31

597532R1

SHAFT, pump drive (Note B)

1шт.

32

597508R1

RETAINER, pump center bearing (Note B)

1шт.

33

597507R1

STEM, pump extension (Note B)

1шт.

180157

BOLT,Hex, 7/16" - 14 x 2 1/2", Gr 5

7/16 x 2-1/2" C-Z

4шт.

NLS

NO LONGER SERVICED

NUT, 7/16" C-Z

4шт.

120383

LOCK WASHER,Helical Spring, 7/16"

WASHER, LOCK, 7/16"

4шт.

34

597510R1

BOWL, pump

1шт.

180153

BOLT,Hex, 7/16" - 14 x 2", Gr 5

7/16 x 2" C-Z

4шт.

35

597537R91

BEARING ASSY,38.1mm ID x 80mm OD x 18mm W

BEARING, drive shaft lower thrust

1шт.

36

597538R1

WASHER, upper thrust

1шт.

37

597540R1

IMPELLER, pump

1шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

2шт.

38

597539R1

WASHER, lower thrust

1шт.

39

597511R11

BAR, pump cutter (includes 597512R1, bushing)

1шт.

180081

BOLT,Hex, 5/16"-18 x 1 1/4", G5

5/16-18 x 1-1/4" C-Z

6шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

40

597512R1

BUSHING, cutter bar

1шт.

41

BAR, pump cutter (order 597511R11) (NSS)

1шт.

42

597541R1

TOOL, pump disintigrator

1шт.
