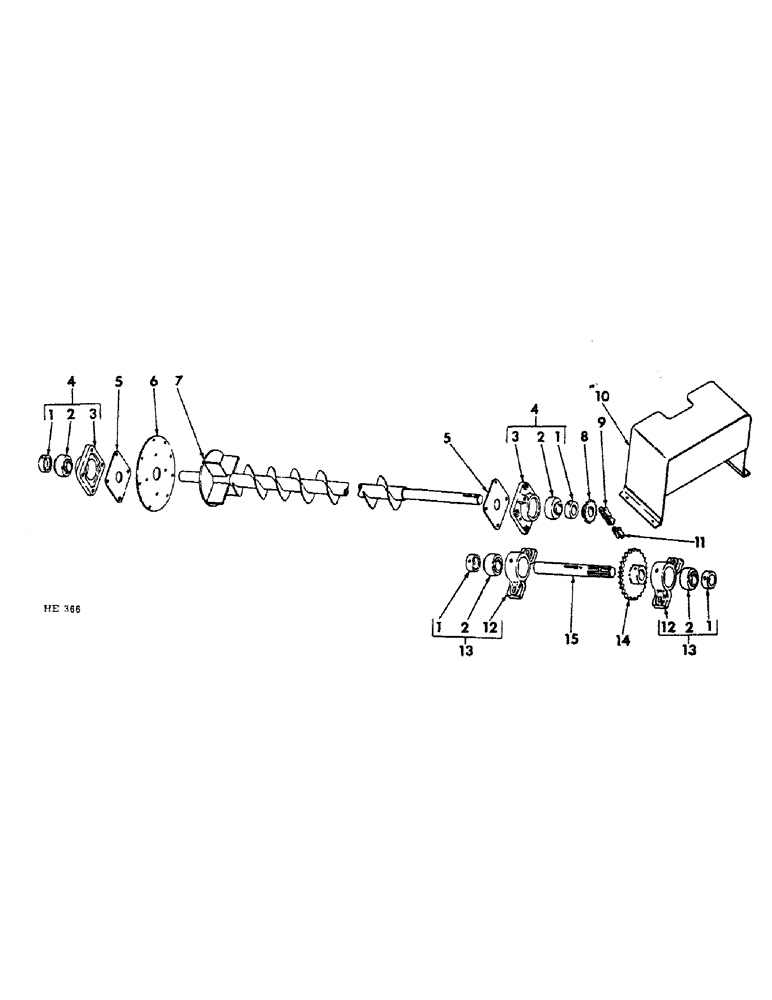

Запчасти Case IH 1100 (N-5) - AUGER SHAFT, DRIVE AND SHIELD

1

517645R11

COLLAR

brg locking (includes 1-102592, screw)

4шт.

102592

SET SCREW,Hex Skt, 3/8" - 16 x 3/8"

SCREW, 3/8 x 3/8" hdls cup-pt set

4шт.

2

470597R91

BEARING, BALL,1.25" ID x 72 mm OD x 2.0156"

BEARING, auger & drive shaft

4шт.

3

HOUSING, auger shaft bearing (NSS)(for service order 1-597502R91, bearing)

1шт.

4

597502R91

BEARING ASSY,1.375" ID x 2.109375" OD x 2.125"

auger shaft (includes 1-housing, 1-470597R91, bearing and 1-517645R11, collar)

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

180175

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1/2 x 1-1/4"

8шт.

120384

WASHER,1/2"

LOCK, 1/2"

8шт.

5

597501R1

GASKET, auger shaft brg housing

2шт.

6

597500R1

RETAINER, outlet cap

1шт.

180122

BOLT,Hex, 3/8" - 16 x 1", Gr 5

3/8 x 1"

8шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

7

597498R2

SHAFT, 1100 spreader auger

1шт.

New part number.

1шт.

7

597499R2

SHAFT, 1400 spreader auger

1шт.

New part number.

1шт.

8

597496R1

SPROCKET, 14T auger drive shaft

1шт.

Q1482

KEY,5/16" Sq x 1", Par

5/16 sq x 1" parallel

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

9

CHAIN, standard 5/8" pitch auger drive (order 1-1791D, 10 ft chain, reduce to 43 links and add 1-1310D, connecting link)

1шт.

10

597497R1

SHIELD, auger drive chain

1шт.

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

5/16 x 1"

2шт.

180083

BOLT,Hex, 5/16" - 18 x 1 1/2", Gr 5

5/16 x 1-1/2"

2шт.

120376

NUT,5/16"-18, G5

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

1310D

LINK

drive chain connecting

1шт.

12

HOUSING, drive shaft bearing (NSS)(for service order 1-597494R91, bearing)

2шт.

13

597494R91

BEARING

front drive shaft pilot (includes housing; 1-470597R91, bearing and 1-517645R11, collar)

2шт.

PO17793

WASHER, special sheared

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

113036

V-BELT,225.00" L

SCREW, 1/2 x 2" sq-hd dog-pt set

2шт.

181700

BOLT,Hex, 1/2" - 20 x 1 1/2", Gr 5

1/2 x 1-1/2"

2шт.

86837295

GUIDE

1/2 x 2"

2шт.

120371

NUT,1/2"-20, G5

4шт.

20601R1

WASHER

17/32 x 1-1/4 x 11 ga

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

14

597495R1

SPROCKET, 32T front drive shaft

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

83-1254

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW, 1/4 x 1/4" hdls cup-pt set

2шт.

15

597493R1

SHAFT, front drive

1шт.
