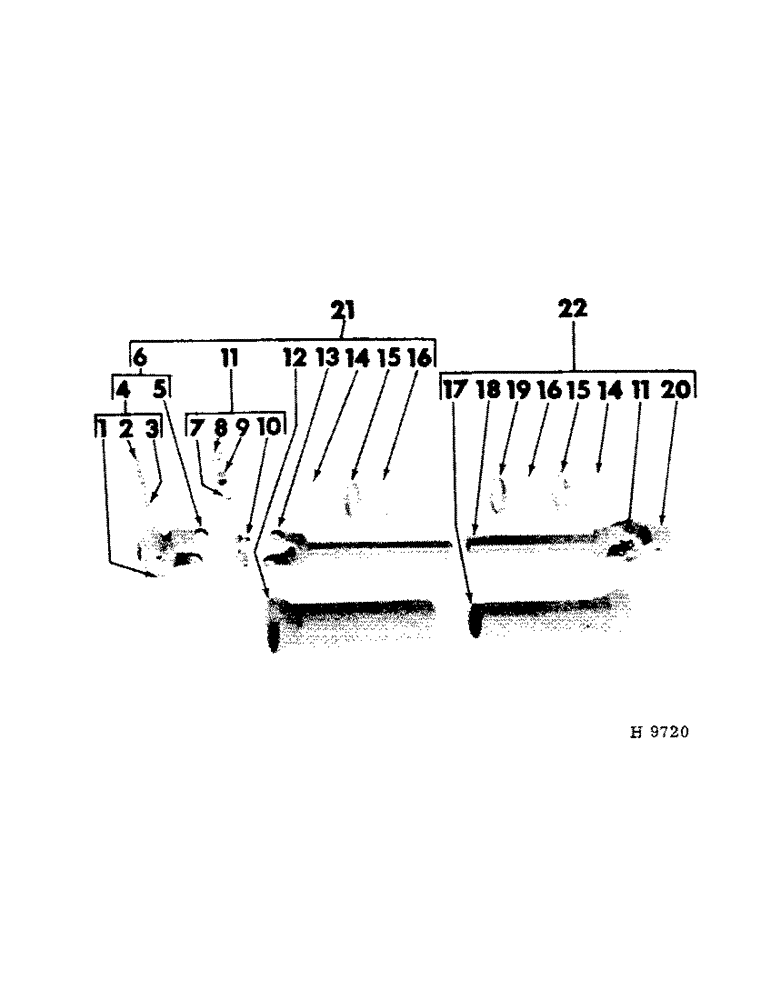

Запчасти Case IH 103 (F-04[B]) - PTO UNIVERSAL (1000 RPM) (ROCKWELL - STANDARD)

1

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

yoke lock pin

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, yoke lock (order 1-630391R11, pin)

1шт.

3

455347R1

VALVE SPRING

SPRING, yoke lock pin

1шт.

4

630391R11

PIN, yoke lock (includes spring, 455347R1 and washer 661406R1)

1шт.

5

NSS

NOT SOLD SEPARAT

YOKE, front (order 1-613431R91, yoke)

1шт.

6

613431R91

YOKE, quick-detachable (includes pin, 630391R11)

1шт.

7

661656R1

SEAL, centre cross oil

8шт.

8

661657R1

RING

centre cross snap

8шт.

9

661655R91

BEARING ASSY,0.59375" ID x 1.0625" OD x 0.4375"

centre cross needle

8шт.

10

NSS

NOT SOLD SEPARAT

CROSS, (order 1-659262R91 cross)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

11

659262R91

U-JOINT SPIDER

CROSS, centre (parts in bracket)

2шт.

12

613435R1

SHIELD, outer front

1шт.

13

613433R91

YOKE & SHAFT, front

1шт.

14

613436R1

CLAMP

RING, snap

2шт.

15

461346R1

BEARING

nylon

2шт.

16

613437R1

THRUST WASHER,62.2mm ID x 71.12mm OD x 1.7mm Thk

thrust

2шт.

17

613434R1

SHIELD, inner rear

1шт.

18

613438R91

YOKE & TUBE, rear

1шт.

19

613439R1

BRACKET

BUSHING, tube support

1шт.

20

580036R1

YOKE, threaded rear

1шт.

21

613429R91

JOINT, front (parts in bracket)

1шт.

22

613430R91

JOINT, rear (parts in bracket)

1шт.

B12219

WASHER

knuckle rear

1шт.
