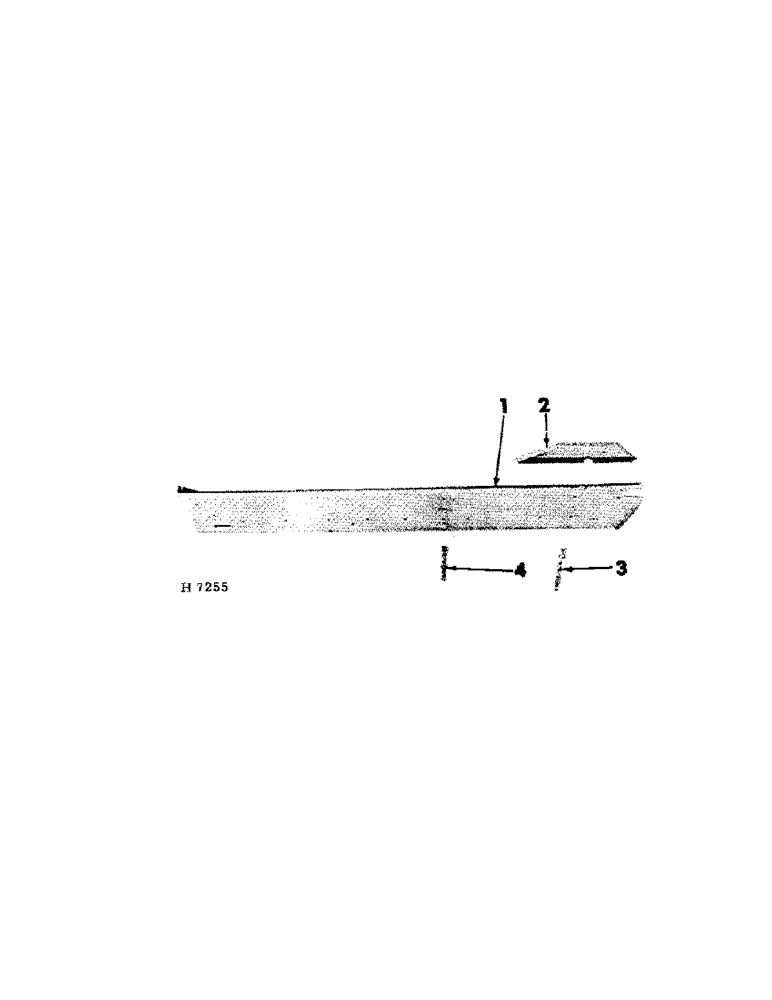

Запчасти Case IH 103 (F-03) - SPREADER BOX SIDES (LEFT SIDE ILLUSTRATED)

1

614466R1

SHEET, side LH

1шт.

1

614467R1

SHEET, side RH

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

20шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

20шт.

2

614476R11

SHEET, side top LH

1шт.

2

614477R11

SHEET, side top RH

1шт.

14991R1

BOLT

W/NUT, 3/8 x 5/8" crg

6шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

614474R1

ANGLE, rear side LH

1шт.

3

614475R1

ANGLE, rear side RH

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg (4-LH; 3-RH)

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

2шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1" crg (left)

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (6-LH; 5-RH) 3/8"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, (left) 7/16"

1шт.

4

614470R1

ANGLE, axle side LH

1шт.

4

614471R1

ANGLE, axle side RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

W/NUT, 3/8 x 1-1/2" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
