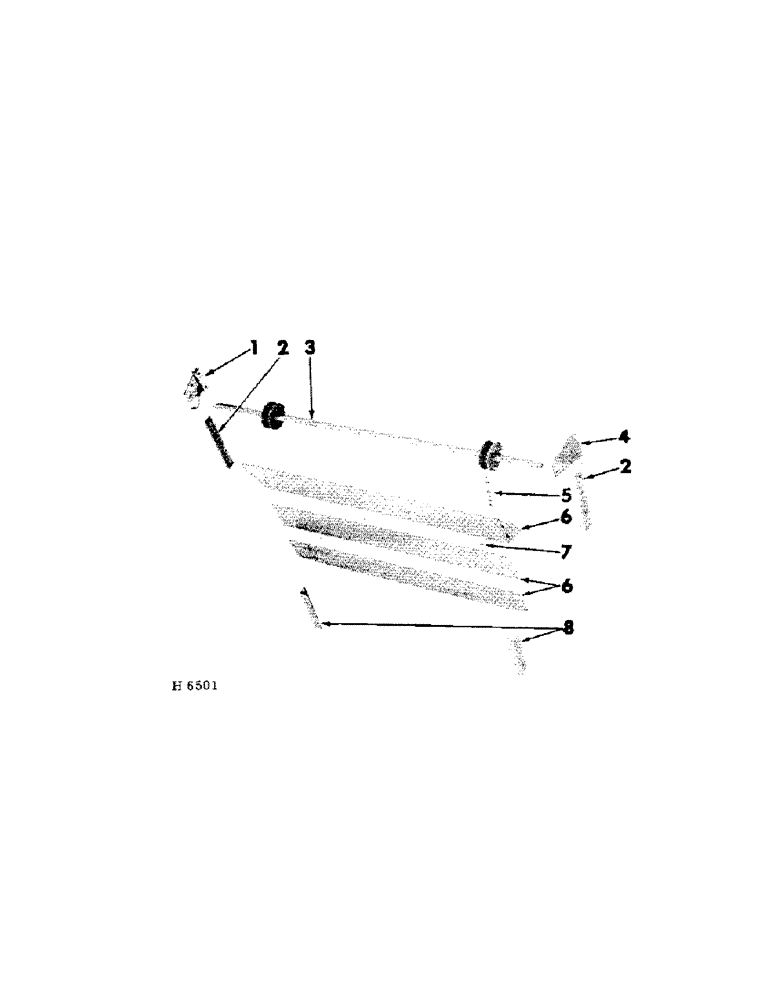

Запчасти Case IH 103 (F-03[B]) - REAR ENDGATE (LIQUID MANURE)

1

612954R92

BRACKET, shaft RH, Serial Range: (prior-1964)

1шт.

1

608411R91

BRACKET, shaft RH (1964 & since)

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1-1/4" crg

1шт.

16785R1

BOLT, 7/16 x 3-1/4" dld crg

1шт.

425-127

SLOTTED NUT,7/16"-14, G5

7/16" slt

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

2

614575R1

STRAP, bracket support

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

3

612933R21

SHAFT, endgate

1шт.

19534R1

PIN,1/4" x 1 1/2", Coiled

2шт.

Q3482

WASHER

WASH, 1-5/32 x 1-3/4 x 11 ga

1шт.

4

612937R2

BRACKET, endgate shaft LH

1шт.

111-404

CARRIAGE BOLT,Short NK, 7/16"-14 x 1 1/4", G5

BOLT W/NUT, 7/16 x 1-1/4" crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

5

CHAIN, endgate lift (order 1-CS-34 10 ft chain & reduce to 23 links)

2шт.

Q3516

PIN

1/4 x 2" std-hd dld

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

6

612953R91

CROSSMEMBER, endgate top

1шт.

6

612944R1

CROSSMEMBER, endgate centre

2шт.

6

612945R1

CROSSMEMBER, endgate bottom

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

7

612938R1

SPACER, endgate chain

8шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/CHAIN, 3/8 x 1" crg

8шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

8шт.

8

614576R1

ANGLE, endgate stop LH

1шт.

8

614577R1

ANGLE, endgate stop RH

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
