Запчасти Case IH 103 (F-03[A]) - FRONT ENDGATE

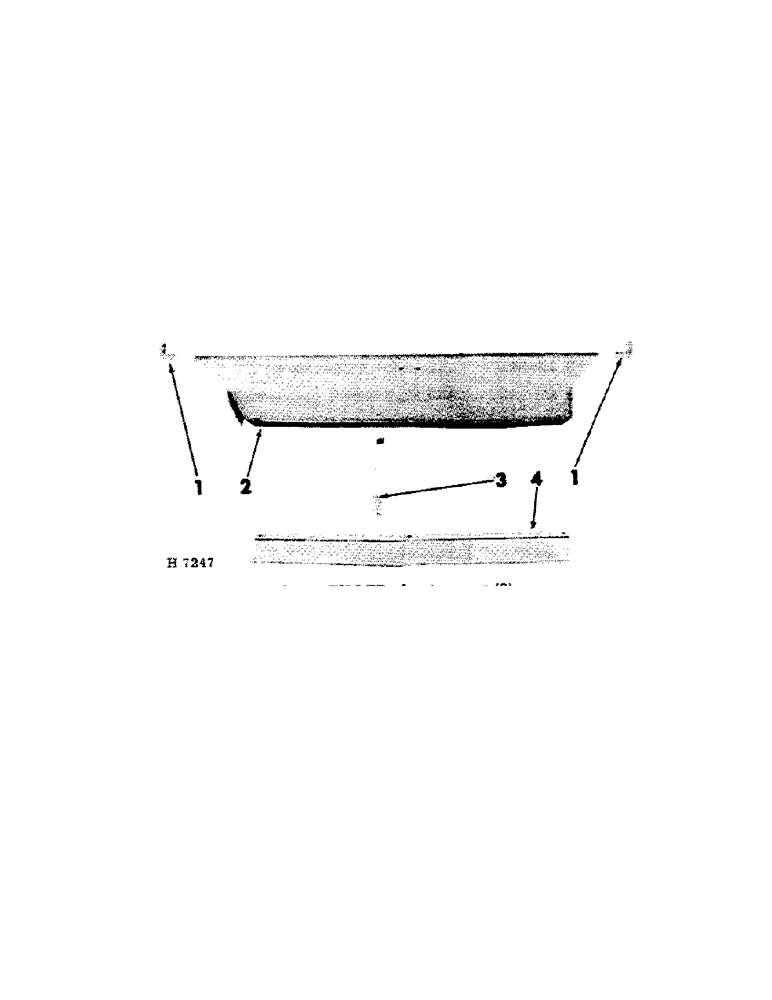

Схема запчастей Case IH 103 - (F-03[A]) - FRONT ENDGATE

Артикул

Название

Примечание

Количество

1

612963R1

FILLER, front corner

2шт.

2

614487R1

ENDGATE, front

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

4шт.

17408R1

BOLT W/NUT, 3/8 x 5/8" mach

7шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

7шт.

3

612803R1

BRACE, front endgate

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

4

612957R11

CANVAS, front endgate

1шт.

18508R1

CARRIAGE BOLT,Short Nk, 3/8" - 16 x 3/4", Gr 2, Full Thd

BOLT W/NUT, 3/8 x 3/4" cd-pltd crg

3шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

Выбрано товаров: 13
