Запчасти Case IH 103 (F-02) - SPREADER BOX BOTTOM

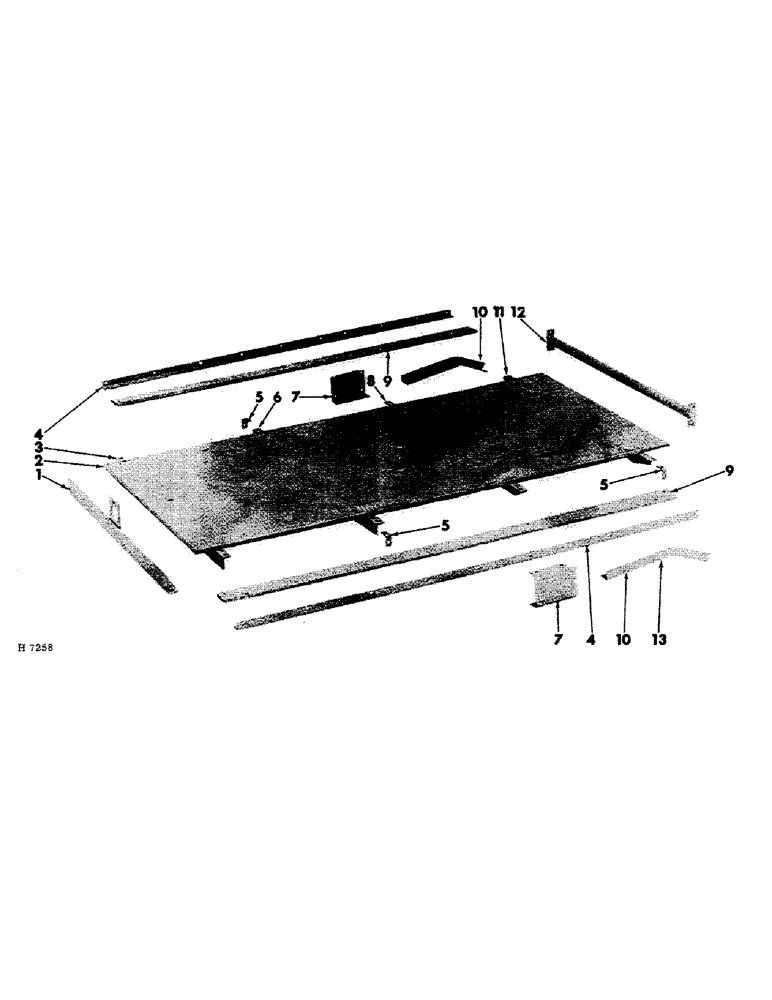

Схема запчастей Case IH 103 - (F-02) - SPREADER BOX BOTTOM

Артикул

Название

Примечание

Количество

1

614488R11

ANGLE, front cross

1шт.

17422R1

BOLT W/NUT, 1/2 x 7/8" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

2

612860R1

BOARD, bottom

1шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

20шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

20шт.

3

614458R1

ANGLE, support first

1шт.

15010R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1", Gr 2

BOLT W/NUT, 1/2 x 1" crg

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

614462R1

ANGLE, side support LH

1шт.

4

614463R1

ANGLE, side support RH

1шт.

5

613105R1

BRACKET, bottom angle support

3шт.

14996R1

BOLT W/NUT, 7/16 x 3/4" crg

2шт.

15009R1

CARRIAGE BOLT,Short Sq Nk, 7/16" - 14 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 7/16"-14 x 1", G2, Full Thd

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

3шт.

6

614459R1

ANGLE, support second

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

614464R1

BRACKET, third support LH

1шт.

7

614465R1

BRACKET, third support RH

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

2шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

11002VA

WASHER

WASH, 17/32 x 7/8 x 16 ga

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

8

614460R1

ANGLE, support third

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

9

614482R1

BOARD, bottom outer LH

1шт.

9

614483R1

BOARD, bottom outer RH

1шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

6шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

14шт.

10

ANGLE, apron raising LH & RH (prior to 1964, order 1-619675R1 LH or 1-619676R1 RH and 2-612714R1 spacers)

1шт.

10

619675R1

ANGLE, apron raising LH (1964 & since)

1шт.

10

619676R1

ANGLE, apron raising RH (1964 & since)

1шт.

15581R1

BOLT,3/8"-16 x 1 1/2", G2

W/NUT, 3/8 x 1-1/2" no. 3 plow

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

614461R1

ANGLE, support fourth

1шт.

88707

CARRIAGE BOLT,Sht Sq Nk, 1/2" - 13 x 1 1/4", Gr 5, Full Thd

BOLT, CARRIAGE, , w/nut Short NK, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-3/8" crg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

12

614486R11

BRACE, spreader box rear

1шт.

179859

BOLT,Hex, 7/16" - 14 x 1 1/8", Gr 5

W/NUT, 7/16 x 1-1/8" type 2

4шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

13

612714R1

SPACER

apron angle (1964 & since)

1шт.

Выбрано товаров: 46
