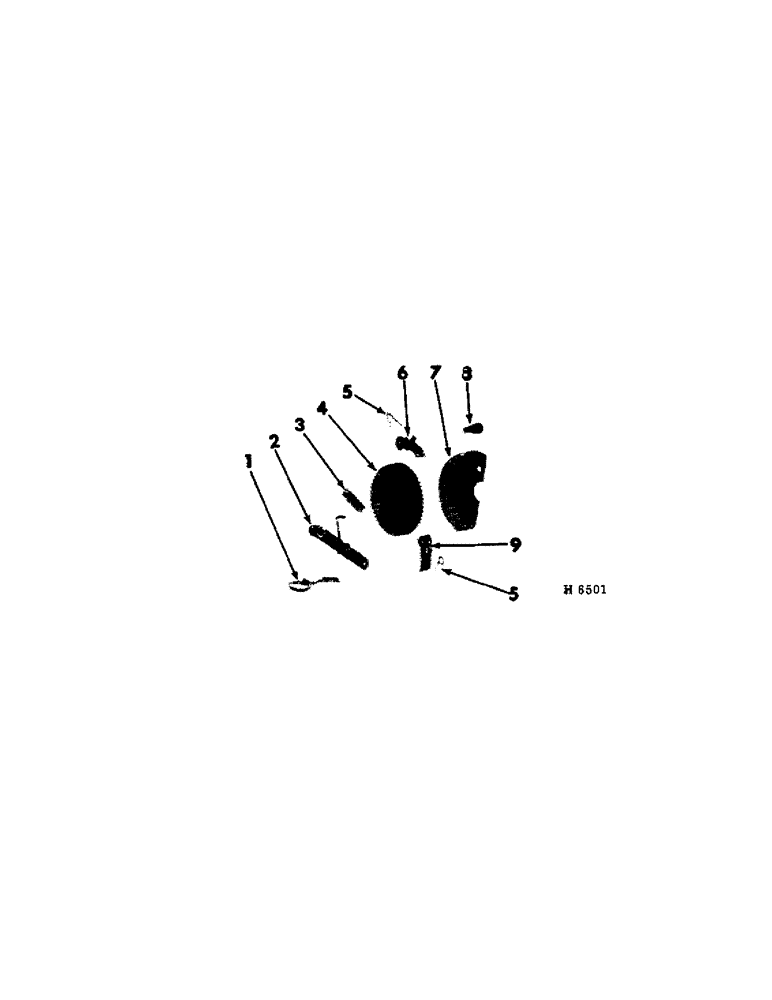

Запчасти Case IH 103 (F-11) - REAR ENDGATE DRIVE (LIQUID MANURE)

1

612934R11

GUIDE

trip lever rope

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

612936R11

LEVER, endgate trip, Serial Range: (prior-1964)

1шт.

2

608413R91

LEVER, endgate trip (1964 & since)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

3

519146R1

SPRING, trip lever

1шт.

4

612931R1

WHEEL, 50T ratchet

1шт.

581306R1

KEY,5/16" Sq x 1 1/4", Par

1шт.

5

612951R1

SPRING

ratchet pawl

2шт.

6

608412R91

PAWL

ratchet wheel upper

1шт.

7

613855R11

SHIELD, endgate ratchet wheel

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

612949R1

SPACER, ratchet pawl upper

1шт.

16785R1

BOLT, 7/16 x 3-1/4" dld crg

1шт.

350515R1

WASHER

WASH, 21/32 x 1 x 16 ga

2шт.

W6652

WASHER

WASH, 15/32 x 1 x 16 ga

1шт.

272070

TUBE

7/16" slt

1шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

9

616361R1

PAWL

ratchet wheel lower

1шт.
