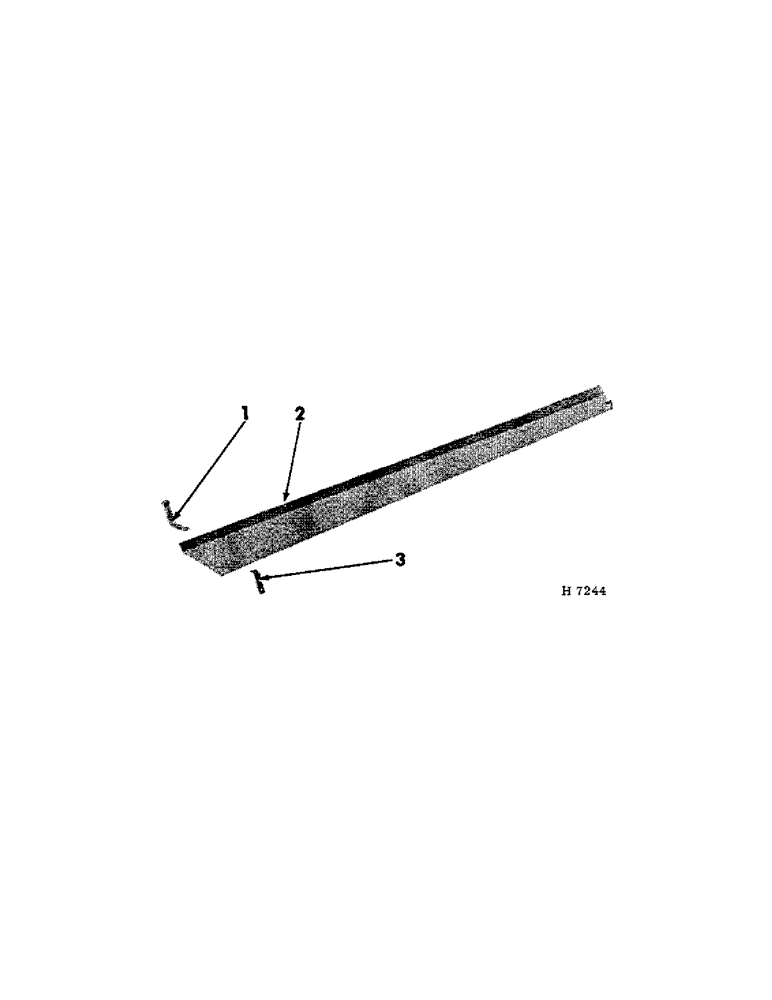

Запчасти Case IH 103 (F-11[C]) - SIDE DRIVE SHIELD

1

614527R1

BRACKET, side shield upper

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

2

614526R1

SHIELD, side drive

1шт.

19282R1

BOLT

W/NUT, 1/4 x 1/2" cd-pltd crg

2шт.

18404R1

CARRIAGE BOLT,Short Sq Nk, 1/4" - 20 x 5/8", Gr 2

BOLT W/NUT, 1/4 x 5/8" cd-pltd crg

3шт.

19419R1

BOLT, 5/16 x 1/2" cd-pltd mach

3шт.

134238R1

WASHER

WASH, 11/32 x 1 x 16 ga cd-pltd

3шт.

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

5шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

3

614528R1

BRACKET, side shield lower

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.
