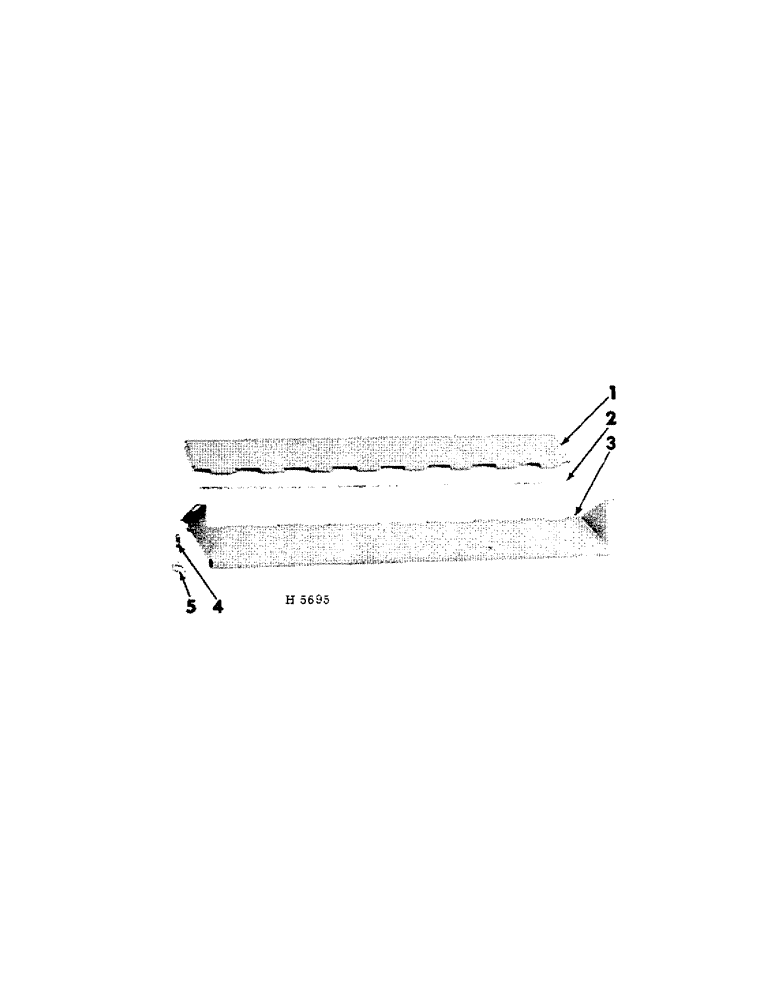

Запчасти Case IH 103 (F-11[B]) - REAR PAN

1

614561R21

BOTTOM, fixed pan

1шт.

14986R1

BOLT W/NUT, 5/16 x 1/2" crg

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

2

614563R1

ROD, hinge

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

2шт.

3

614856R2

BOTTOM, hinged pan

1шт.

4

M296

SPRING

pan latch

2шт.

5

454502R1

LATCH

hinged pan

2шт.

Q1504

WASHER

WASH, 13/32 x 7/8 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

2шт.
