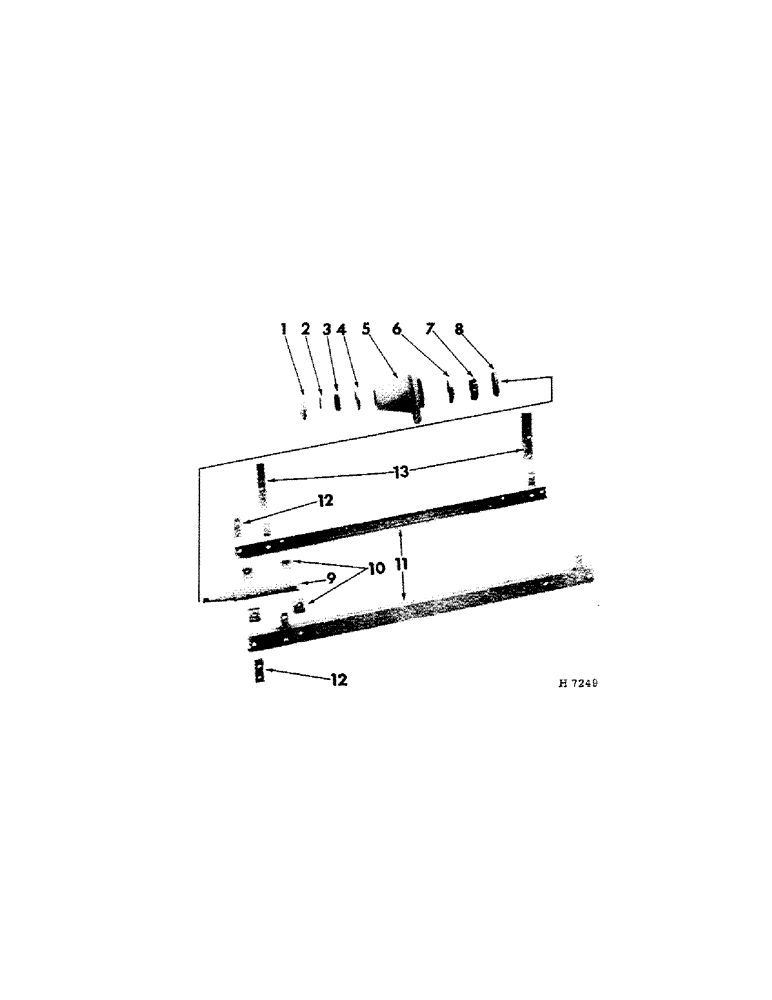

Запчасти Case IH 103 (F-10) - AXLE

1

612884R1

HUB CAP

CAP, wheel hub

2шт.

2

612889R1

WASHER

29/32 x 1-3/4 x 9 ga

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, axle outer brg

2шт.

4

651817R1

BEARING CUP

CUP, axle outer brg

2шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

2шт.

5

614496R1

HUB, wheel (15" wheels) (regular)

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

1/2" - NF wheel

12шт.

5

612739R1

HUB, wheel (20" wheels) (special)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

9/16" - NF wheel

16шт.

6

663558R1

BEARING CUP

CUP, axle inner brg

2шт.

7

663557R91

BEARING ASSY,1.625" ID x 2.892" OD x 0.77"

CONE, axle inner brg

2шт.

8

459919R91

SEAL

axle brg oil

2шт.

9

612767R1

AXLE, wheel

2шт.

612634R1

NUT

7/16" slt

2шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

2шт.

10

612726R1

CLAMP, axle

8шт.

17813R1

BOLT W/NUT, 1/2 x 5" mach

3шт.

17864R1

BOLT W/NUT, 1/2 x 5-3/4" mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

11

614493R11

CHANNEL, axle front

1шт.

11

614494R11

CHANNEL, axle rear

1шт.

15017R1

BOLT W/NUT, 1/2 x 1-1/8" crg

4шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

12

614495R1

STRAP, channel tie RH

2шт.

17864R1

BOLT W/NUT, 1/2 x 5-3/4" mach

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

13

614472R1

ANGLE, channel support LH

1шт.

13

614473R1

ANGLE, channel support RH

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

17471R1

BOLT,Hex, 3/8" - 16 x 1 1/2"

W/NUT, 3/8 x 1-1/2" mach

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.
