Запчасти Case IH 103 (F-10[A]) - PNEUMATIC TIRE AND WHEEL

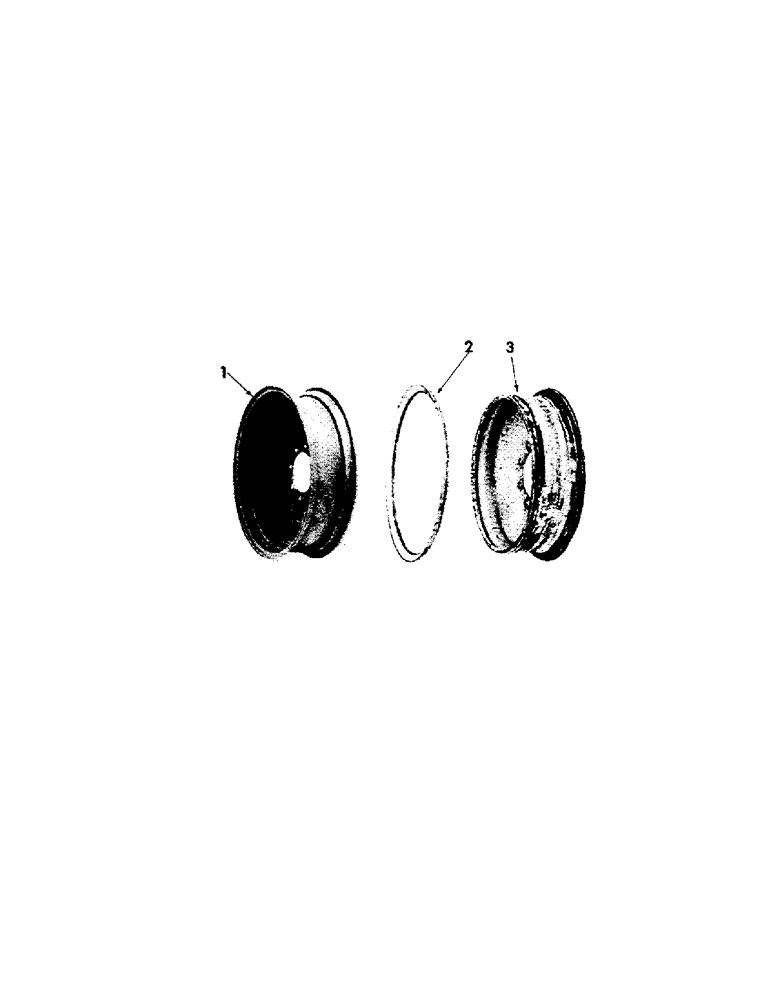

Схема запчастей Case IH 103 - (F-10[A]) - PNEUMATIC TIRE AND WHEEL

Артикул

Название

Примечание

Количество

1

614424R91

WHEEL ASSY.

WHEEL, (15 x 6" L.B.") 7.60 x 15", for 15" wheels) (regular)

2шт.

351079R1

BOLT,Hex Counter Shank, 1/2" - 20 x 23/32"

wheel

12шт.

1

618982R91

WHEEL

(W7-20 up to & including 7.50 x 20" used truck tires) (special)

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

2

617659R1

RING, rim side (Electric or Motor Wheel Co.'s)

2шт.

2

594156R1

FLANGE

RING, rim side (J. Sankey & Sons Co.)

2шт.

3

617624R91

WHEEL, (includes 617659R1 or 594456R1, ring) (special) (for 20" truck tires up to and including 9.00 x 20")

2шт.

617918R1

BOLT,9/16" - 18 x 1 15/32"

wheel

16шт.

TIRE & TUBE, (7.60 x 15" implement type) (regular)

2шт.

Выбрано товаров: 9
