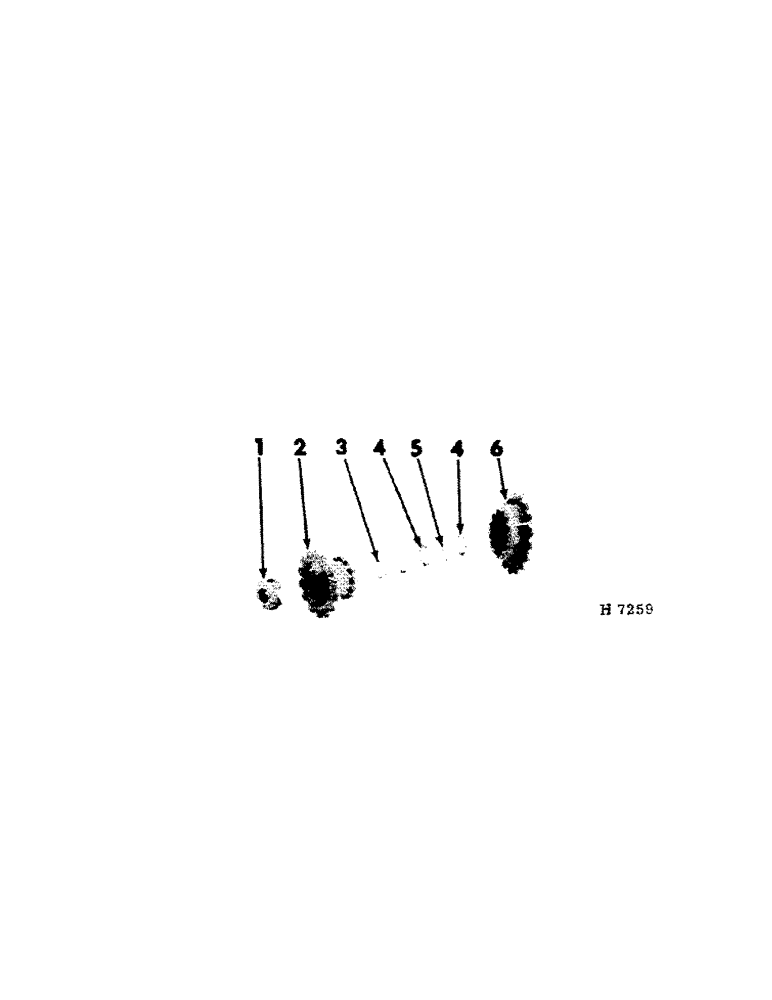

Запчасти Case IH 103 (F-09) - WIDESPREAD CLUTCH

1

614558R1

COLLAR, clutch sprocket locking

1шт.

19972R1

PIN,11.1mm OD x 11.1mm L, Coiled

7/16 x 2-1/2" coiled-spg

1шт.

2

614557R1

SPROCKET, 14T widespread clutch

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

3

614556R1

SPRING, clutch

1шт.

4

Q121

WASHER

1-9/32 x 2 x 16 ga

2шт.

5

609053R1

SNAP RING,#125, Ext

Ring, Snap, , sprocket #125, Ext

1шт.

6

614555R1

SPROCKET, 17T driven

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

612908R92

CHAIN (AG)

CHAIN, apron (included parts listed)

1шт.
