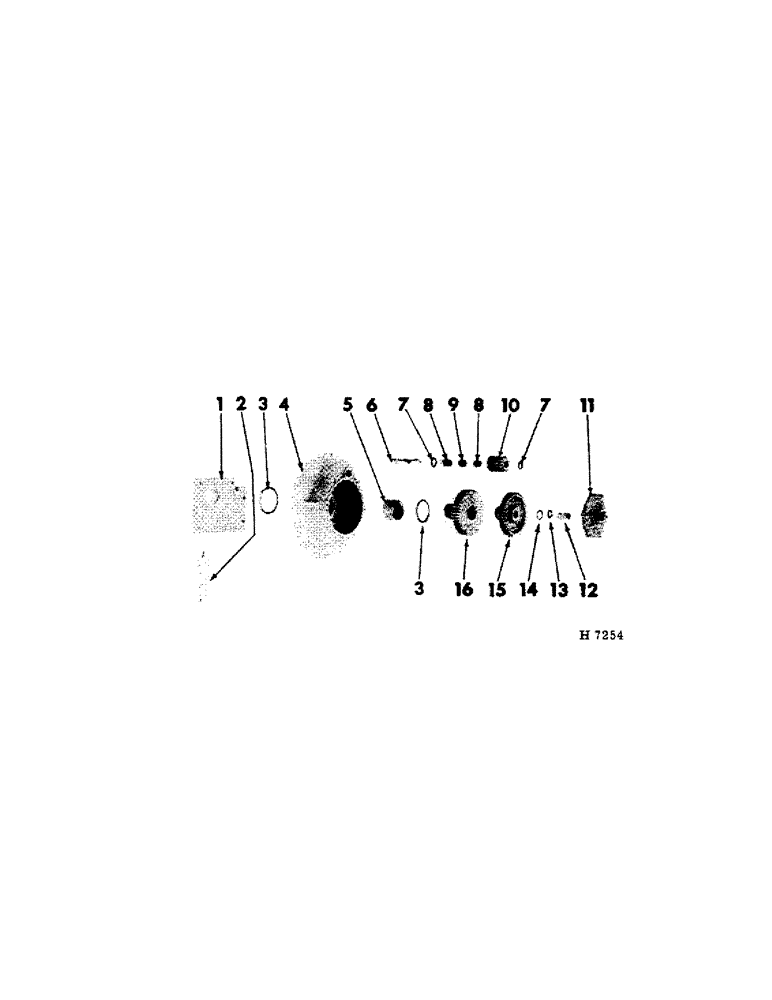

Запчасти Case IH 103 (F-08) - MAIN DRIVE GEAR CASE

614500R91

CASE, main drive gear (consists of parts listed, unless otherwise noted)

1шт.

1

614484R1

SUPPORT, fixed sun gear

1шт.

Not part of gear case.

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

2шт.

Not part of gear case.

1шт.

15558R1

BOLT W/NUT, 7/16 x 1-1/8" no 3 plow

1шт.

Not part of gear case.

1шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-3/8" crg

1шт.

Not part of gear case.

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

Not part of gear case.

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

Not part of gear case.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

Not part of gear case.

1шт.

614511R1

PLATE, fixed sun gear stop

1шт.

Not part of gear case.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

1шт.

Not part of gear case.

1шт.

179883

BOLT,Hex, 1/2" - 13 x 1 1/4", Gr 5

w/Nut Hex, 1/2"-13 x 1 1/4", G5, Full Thd

1шт.

Not part of gear case.

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

Not part of gear case.

1шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

1шт.

Not part of gear case.

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

Not part of gear case.

1шт.

3

614505R1

WASHER, fixed sun gear

2шт.

4

614501R11

CASE, gear (includes 614506R91 brg)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

5

614506R91

BEARING, gear case fixed gear

1шт.

6

614509R1

SHAFT, planet gear

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

19442R1

PIN,3/16" x 1 1/2", Coiled

1шт.

7

614510R1

WASHER, planet gear shaft

2шт.

8

142928H

NEEDLE BEARING

BEARING, planet gear

2шт.

9

551139R91

BEARING, NEEDLE

BEARING, planet gear

1шт.

10

614508R1

GEAR, 15T planet

1шт.

11

614502R11

CAP, gear case (includes 614503R1 bush & 172574 plug)

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

172574

PLUG,Exp, 1 1/2"

1-1/2" expansion

1шт.

17411R1

BOLT,Hex, 5/16"-18 X 3/4", G2

5/16 x 3/4" mach

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

12

614503R1

BUSHING, gear case cap

1шт.

13

454319R1

RING

sun gear retaining

1шт.

14

68049H

WASHER

1-5/32 x 1-1/2 x 16 ga

1шт.

15

614507R1

GEAR, 46T sun

1шт.

Q5023

KEY,5/16" Sq x 2 1/4", Par

5/16 x 5/16 x 2-1/4" straight

1шт.

16

614504R1

GEAR, 45T fixed sun

1шт.
