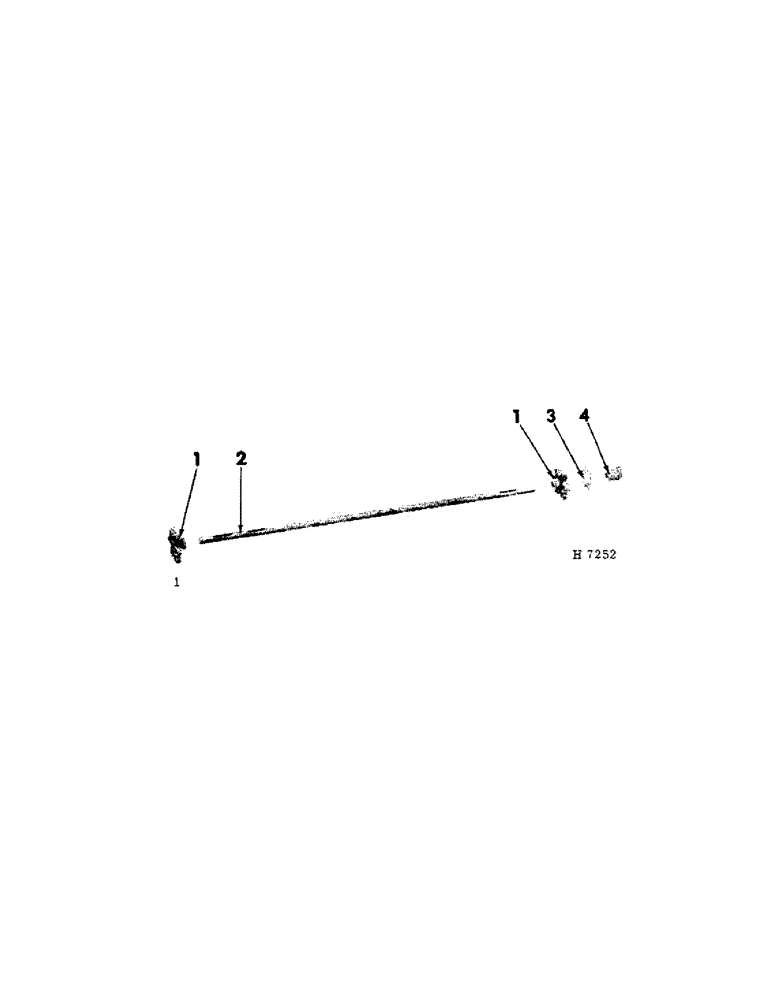

Запчасти Case IH 103 (F-08[B]) - REAR APRON SHAFT

1

613068R2

SPROCKET, 6T rear apron shaft

2шт.

19479R1

PIN,1/4" x 2", Coiled

2шт.

586879R1

KEY

5/16 x 5/16 x 2" straight

2шт.

2

614499R1

SHAFT, rear apron

1шт.

Q162

WASHER

WASH, 1-5/32 x 1-3/4 x 16 ga

1шт.

108645

COTTER PIN

C-PIN, 1/4 x 1-3/4"

1шт.

3

613026R1

SUPPORT, apron shaft brg LH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

3шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

3шт.

4

613022R1

BEARING, shaft LH

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.
