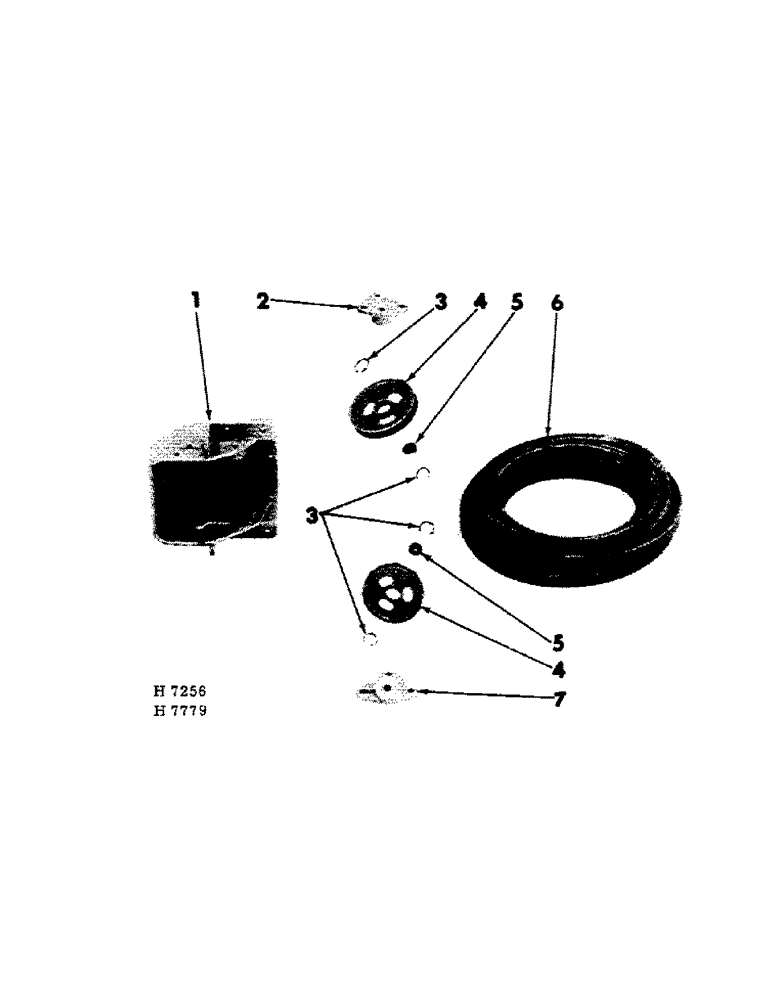

Запчасти Case IH 103 (F-07) - DRIVE BELT AND IDLERS

1

614514R1

HOUSING, idler pulley

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

5шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

614515R1

BRACKET, idler pulley upper (540 RPM)

1шт.

2

608599R1

BRACKET, idler pulley (1000 RPM)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1" mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

3

133213R1

SNAP RING,1.562", Int, #156

Ring, Snap, , brg (1963 & since) 1.562", Int, #156

4шт.

4

PULLEY, idler (prior to 1963 order 1-607660R1, pulley; 1-622567R1, bush; 1-611928R91, brg; 2-133213R1, ring; 1-179889, bolt & 1-103323, lk-wash)

2шт.

4

607660R1

PULLEY, idler (1963 & since)

2шт.

179889

BOLT,Hex, 1/2" - 13 x 2", Gr 5

1/2 x 2" type 2

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

5

611928R11

BEARING, idler pulley (1963 & since) (opt w/608372R91 or 613863R91, brg)

2шт.

5

608372R91

BEARING

idler pulley (1963 & since) (opt w/611928R91 or 613863R91, brg)

2шт.

5

613863R91

BEARING

idler pulley (1963 & since) (opt w/608372R91 or 611928R91, brg)

2шт.

6

614520R1

V-BELT,0.88" W x 274.00" L

Main drive (540 RPM) 0.88" W x 274.00" L

1шт.

608598R1

V-BELT 0.88" W x 263.00" L, Main drive (1000 RPM) 0.88" W x 263.00" L

1шт.

7

614516R1

BRACKET, idler pulley lower (540 RPM)

1шт.

7

608600R1

BRACKET, idler pulley lower (1000 RPM)

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

3/8 x 1" mach

2шт.

17446R1

BOLT,3/8" - 16 x 1 1/4", Gr 2

3/8 x 1-1/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

614518R1

BUSHING, idler pulley inner, Serial Range: (prior-1963)

2шт.

614519R1

BUSHING, idler pulley, Serial Range: (prior-1963)

2шт.

622567R1

WASHER

BUSHING, idler pulley (1963 & since)

2шт.
