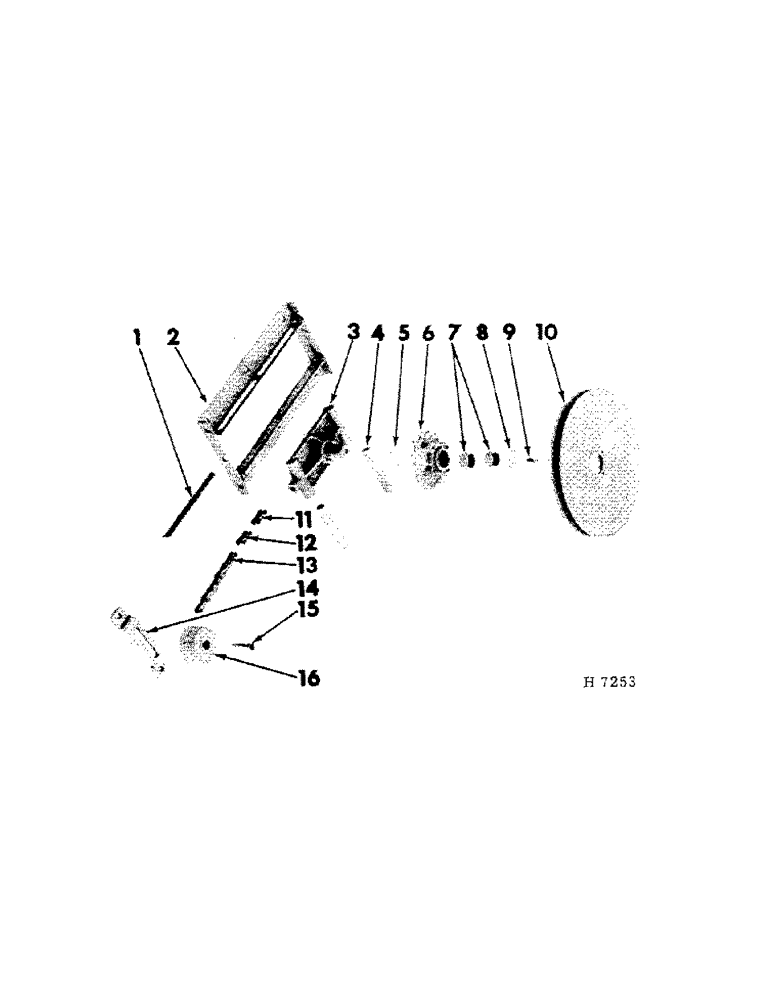

Запчасти Case IH 103 (F-07[A]) - JACKSHAFT

1

614744R1

BOLT, jackshaft tightener

1шт.

120378

NUT,Hex, 1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

2

614485R1

SUPPORT, jackshaft

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

2шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

3

614531R91

SUPPORT, jackshaft pin

1шт.

17829R1

SCREW,Hex, 1/2" - 13 x 5 1/4"

BOLT, 1/2 x 5-1/4" mach

2шт.

Q5035

WASHER

WASH, 17/32 x 1 x 16 ga

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

4

614535R1

NUT, jackshaft support bolt

2шт.

5

Q121

WASHER

1-9/32 x 2 x 16 ga

1шт.

6

614536R1

SPROCKET, 13T pulley hub

1шт.

7

578118R91

NEEDLE BEARING

pulley hub

2шт.

8

615090R1

WASHER

bearing retainer

1шт.

9

605277R1

BOLT, jackshaft grease

1шт.

16964R91

FITTING

LUB-FTG, 1/4" - 90 degree elbow

1шт.

615090R1

WASHER

WASH, 17/32 x 2 x 11 ga

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

10

564625R21

PULLEY, jackshaft

1шт.

19286R1

BOLT, 5/16 x 3/4" cd-pltd mach

4шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

11

456980R91

CHAIN LINK

LINK, drive chain connecting

1шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

12

456929R91

CHAIN LINK

LINK, drive chain offset

2шт.

1360D

PIN, offset link

3шт.

1751D

PACKAGE

C-PIN, 1/4 lb. pkg

1шт.

13

CHAIN, 1-1/4" extended pitch agricultural gear case drive (order 1-569089R91, 10 ft chain, reduce to 61 links, add 3-456929R91, offset links, & 1-456980R91, connecting link)

1шт.

14

614539R1

SUPPORT, chain tightener

1шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

15

612794R1

SPACER

BUSHING, chain tightener roller

1шт.

16

612859R1

ROLLER

chain tightener

1шт.

15144R1

BOLT

W/NUT, 1/2 x 3" crg

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.
