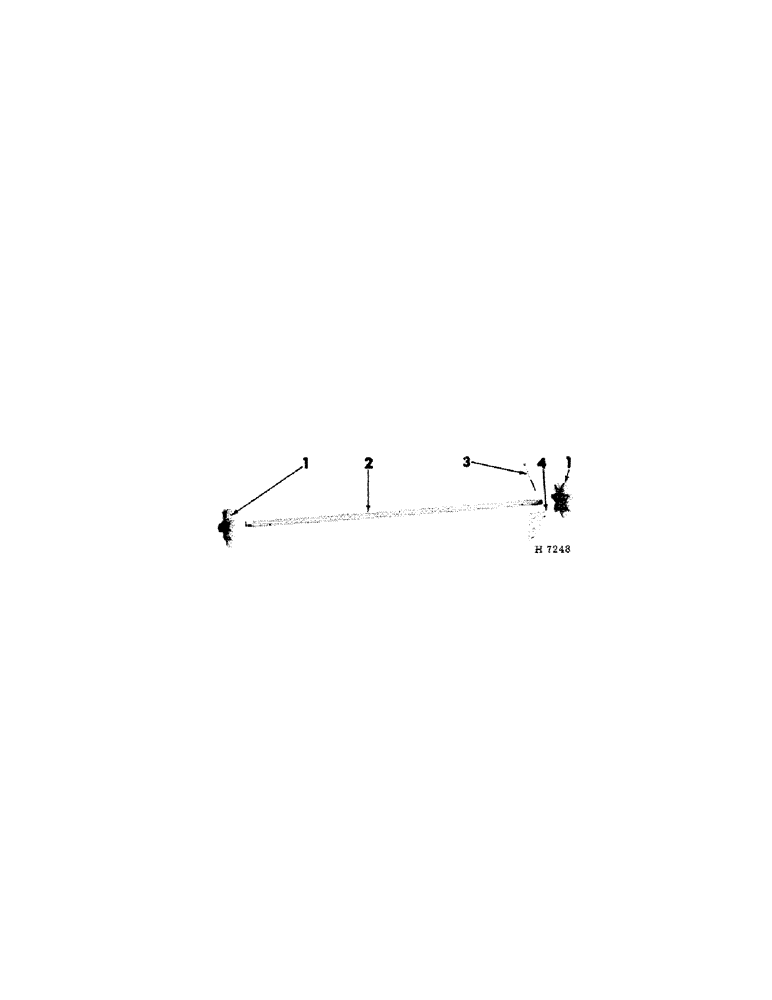

Запчасти Case IH 103 (F-06[A]) - FRONT APRON SHAFT

1

612976R1

SPROCKET ASSY.

SPROCKET, 7T apron shaft

2шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

2шт.

2

614497R1

SHAFT, front apron

1шт.

Q5036

WASHER

WASH, 1-1/32 x 1-3/4 x 16 ga

2шт.

557273R1

WASHER

WASH, 1-1/32 x 2 x 11 ga

2шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

2шт.

3

619685R1

BOLT

apron chain tightener

2шт.

271501

SOCKET

NUT, 7/16" cd-pltd

4шт.

4

614498R1

PLATE, apron chain tightener

2шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

2шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

6шт.
