Запчасти Case IH 103 (F-05) - PTO UNIVERSAL (540 RPM) (ROCKWELL - STANDARD)

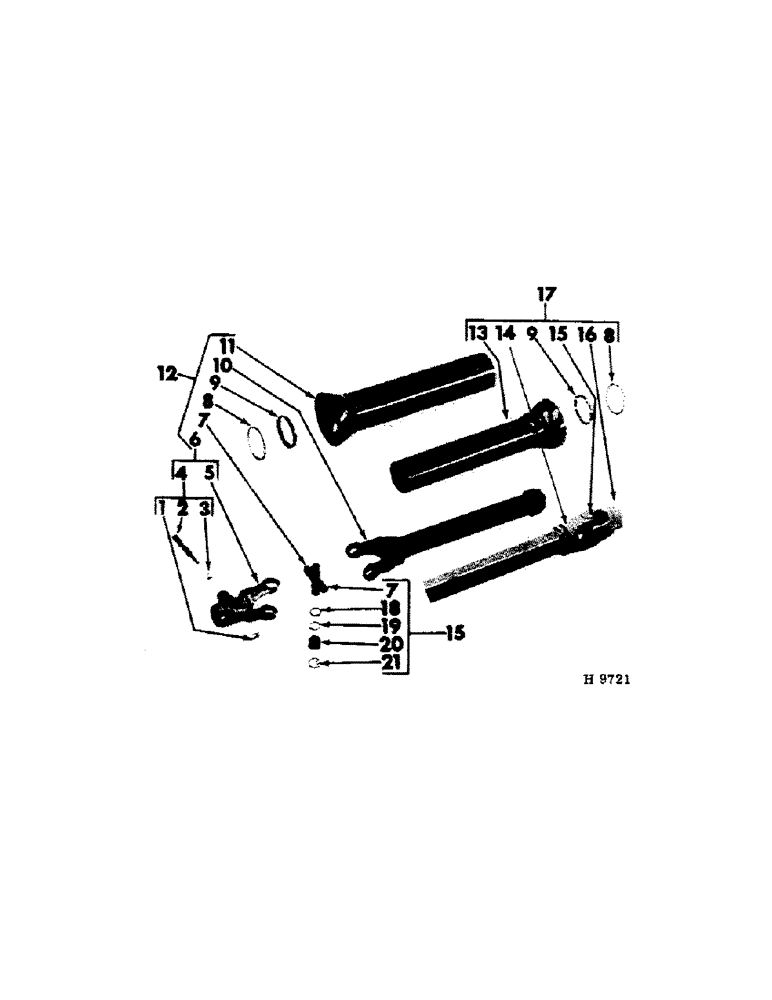

Схема запчастей Case IH 103 - (F-05) - PTO UNIVERSAL (540 RPM) (ROCKWELL - STANDARD)

Артикул

Название

Примечание

Количество

1

661406R1

LOCK WASHER,4.83mm ID x 18.542mm OD x 1.65mm Thk

front yoke lock pin

1шт.

2

NSS

NOT SOLD SEPARAT

PIN, yoke lock (order 1-455346R21, pin)

1шт.

3

455347R1

VALVE SPRING

SPRING, yoke lock pin

1шт.

4

455346R21

PIN

yoke lock (includes spring, 455347R1, & washer, 661406R1)

1шт.

5

NSS

NOT SOLD SEPARAT

YOKE, front (order 1-455344R91)

1шт.

6

455344R91

YOKE, quick-detachable (includes pin, 455346R21)

1шт.

7

NSS

NOT SOLD SEPARAT

CROSS, (order 1-454740R91)

2шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

8

662589R1

THRUST WASHER

shield thrust

2шт.

9

662598R91

BEARING

shield ball

2шт.

10

619397R91

YOKE

& TUBE, front

1шт.

11

619858R91

SHIELD

front outer

1шт.

12

619396R91

JOINT

front (includes no.'s 1 to 11 inclusive & no. 15)

1шт.

13

619859R91

SHIELD

rear inner

1шт.

14

619398R91

SHAFT

YOKE & SHAFT, rear

1шт.

15

454740R91

CROSS

centre (parts in bracket)

2шт.

16

617663R1

YOKE, threaded rear

1шт.

17

619325R91

JOINT

rear (parts in bracket)

1шт.

18

450779R1

RETAINER

cork wash

8шт.

19

450778R1

WASHER

centre cross cork

8шт.

20

450776R1

CAP

BUSHING, centre cross

8шт.

21

454741R1

RING, centre cross snap

8шт.

B12219

WASHER

knuckle rear

1шт.

Выбрано товаров: 23
