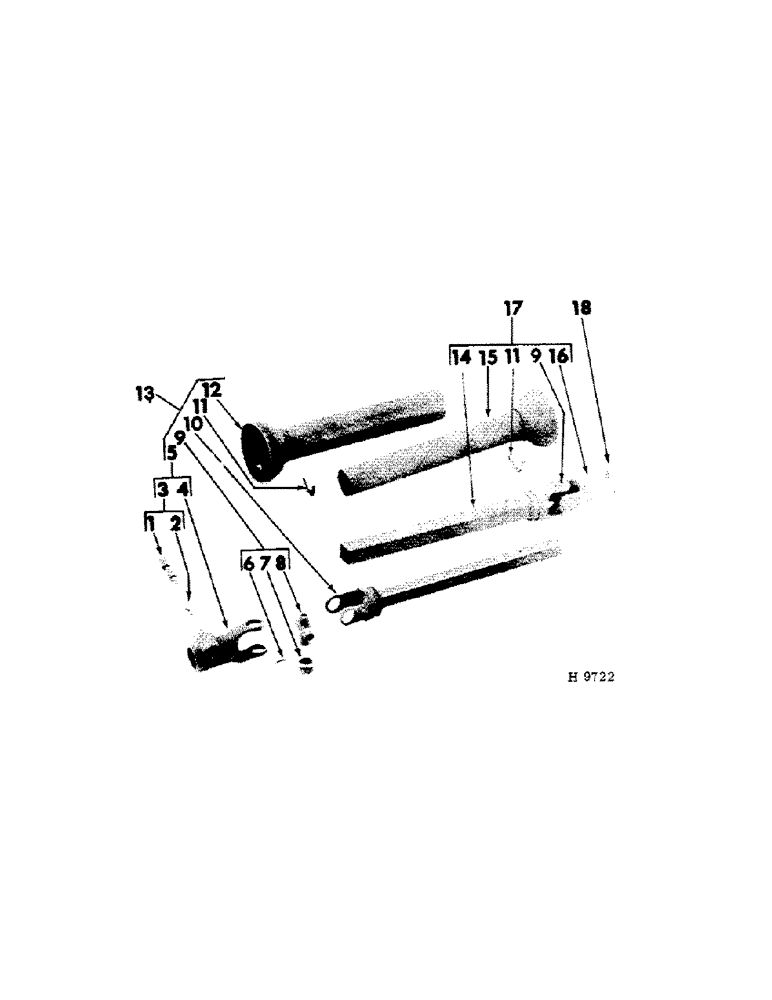

Запчасти Case IH 103 (F-05[A]) - PTO UNIVERSAL (540 RPM) (HAYES STEEL)

1

NSS

NOT SOLD SEPARAT

PIN, yoke lock (order 1-613867R11 pin)

1шт.

17078R1

LOCK PIN,1/8" x 13/16", Slotted

PIN, 1/8" x 13/16", Slotted

1шт.

2

613868R1

SPRING

yoke lock pin

1шт.

3

613867R11

PIN

yoke lock (includes pin, 17078R1 and spring, 613868R1)

1шт.

4

YOKE, front (order 1-613866R91)

8шт.

5

613866R91

YOKE, quick-detachable (includes pin, 613867R11)

1шт.

6

613469R1

RING

centre cross snap

8шт.

7

613470R11

BEARING, centre cross

8шт.

8

NSS

NOT SOLD SEPARAT

CROSS, (order 10613471R91)

2шт.

19769R1

LUB-FTG, 1/4" - 65 degree elbow

1шт.

9

613471R91

SPIDER ASSY.

CROSS, centre (parts in bracket)

2шт.

10

614000R92

YOKE & SHAFT, front

1шт.

11

613870R1

BEARING HALF

BEARING, shield nylon

4шт.

12

614002R92

SHIELD, front outer

1шт.

13

614009R92

JOINT

front (parts in bracket)

1шт.

14

614001R91

YOKE & TUBE, rear

1шт.

15

614003R91

SHIELD, rear inner

1шт.

16

613466R1

YOKE

threaded rear

1шт.

17

614010R91

JOINT,16.75, 2.5" Length

rear (parts in bracket)

1шт.

18

B12219

WASHER

knuckle rear

1шт.
