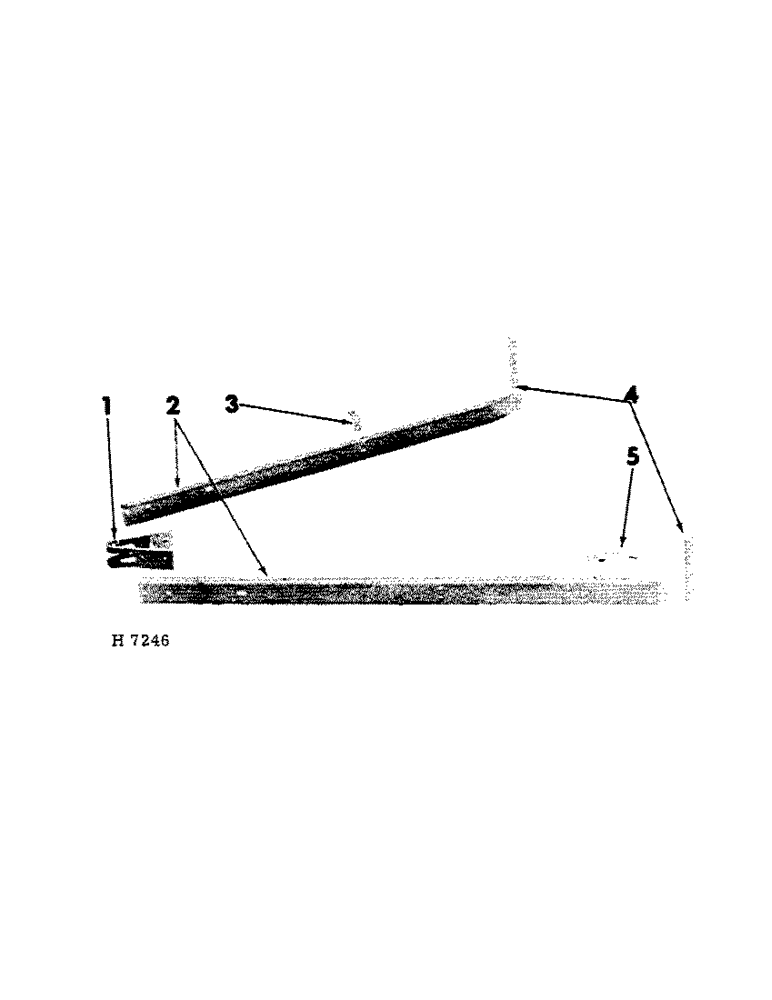

Запчасти Case IH 103 (F-04) - TRACTOR HITCH

1

612792R11

STRAP, hitch pivot

1шт.

17473R1

BOLT,Hex, 1/2" - 13 x 1 1/2", Gr 2

W/NUT, 1/2 x 1-1/2" mach

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

4шт.

E23193

PIN, 3/4 x 4-11/16" std-hd dld

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

2

614490R1

CHANNEL, hitch LH

1шт.

2

614491R1

CHANNEL, hitch RH

1шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

2шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

2шт.

181427

BOLT,Hex, 1/2" - 20 x 1", Gr 5

W/NUT, 1/2 - NF x 1" type 2

4шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

8шт.

3

612855R1

ANGLE, channel support

2шт.

17450R1

BOLT W/NUT, 5/8 x 1-1/4" mach

2шт.

103325

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

614468R1

ANGLE, hitch support LH

1шт.

4

614469R1

ANGLE, hitch support RH

1шт.

14996R1

BOLT W/NUT, 7/16 x 3/4" crg

2шт.

15003R1

BOLT,Sq Nk, 7/16" x 7/8"

W/NUT, 7/16 x 7/8" crg

2шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

4шт.

5

617510R1

PLATE, apron raising

2шт.

15557R1

PLOW BOLT,#3 Hd, 3/8" - 16 x 1 1/8", Gr 2

BOLT, PLOW, 3/8"-16 x 1 1/8", G2, Full Thd

2шт.

102635

NUT,3/8"-16, G5

4шт.
