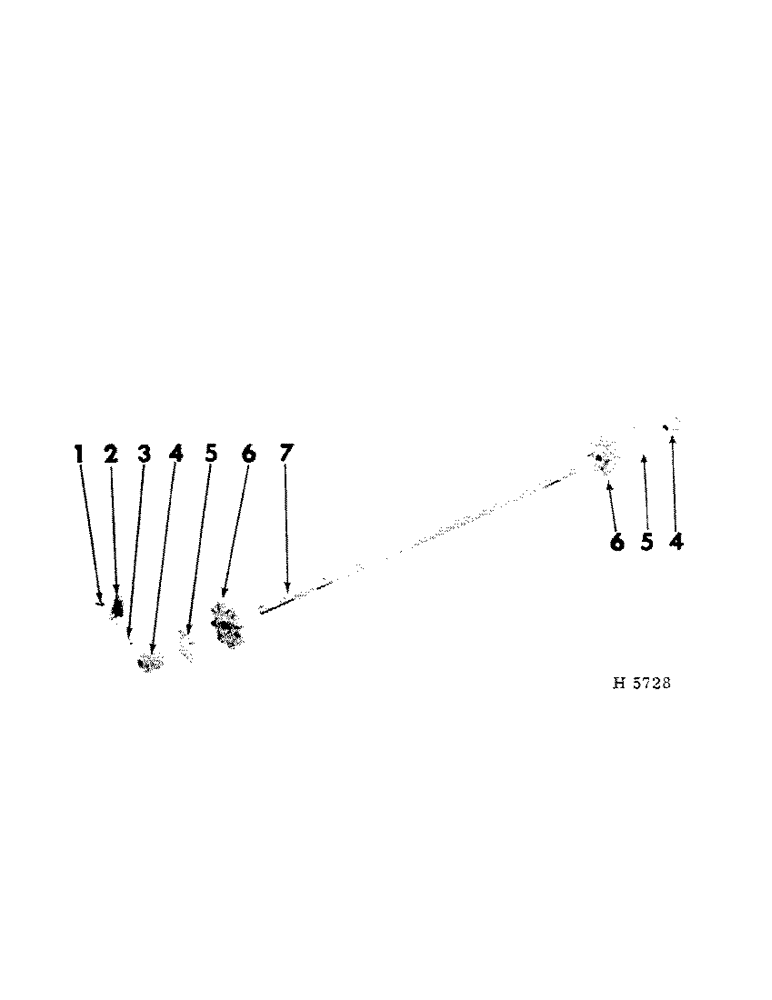

Запчасти Case IH 102 (C-05[B]) - REAR APRON SHAFT

1

105412

ELBOW,90 Degree, 1/8" NPT

left bearing nipple

1шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

1шт.

2

613159R1

BRACKET, apron shaft lubricator

1шт.

17413R1

BOLT,Hex, 7/16"-14 x 3/4", G2, Full Thd

W/NUT, 7/16 x 3/4" mach

1шт.

103322

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

1шт.

3

144623

INSERT,Nipple, 1/8" NPT x 6"

NIPPLE, 1/8 x 6" LH

1шт.

4

613158R1

BEARING

apron shaft

2шт.

219-28

LUBE NIPPLE,5/16" - 32

LUB-FTG, 5/16" (RH)

1шт.

5

612768R1

SUPPORT, shaft brg

2шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

6

612910R1

SPROCKET ASSY.

SPROCKET, 8T rear apron shaft

2шт.

576482R1

LOCK PIN,5/16" x 2", Slotted

2шт.

Q98

KEY, 1/4 x 1/4 x 1-7/8" straight 1/4" Sq x 1 7/8", Par

2шт.

7

612757R1

SHAFT, rear apron

1шт.

32-2028

COTTER PIN,5/16" x 1 3/4"

PIN, SPLIT (COTTER), 5/16" x 1 3/4"

2шт.

Q121

WASHER

WASH, 1-9/32 x 2 x 16 ga

1шт.
