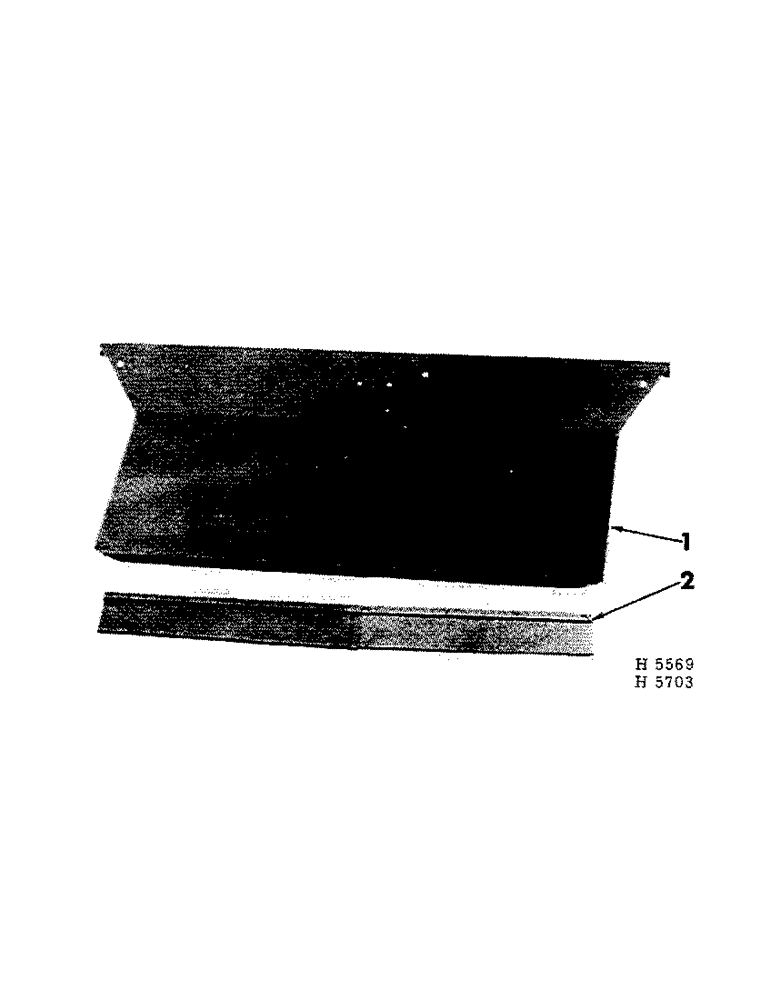

Запчасти Case IH 102 (C-04) - FRONT ENDGATE

1

612807R2

ENDGATE, front

1шт.

19284R1

BOLT,Sq Nk, 3/8" - 16

W/NUT, 3/8 x 3/4" cd-pltd crg

2шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

6шт.

19288R1

BOLT W/NUT, 3/8 x 1-1/4" cd-pltd mach

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

W/NUT, 3/8 x 1-1/2" cd-pltd mach

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

10шт.

2

612957R11

CANVAS, front endgate

1шт.

86508749

CARRIAGE BOLT,Short Square Neck, 3/8" - 16 x 1 1/4", Grade 5

BOLT W/NUT, 3/8 x 1-1/4" crg

3шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.
