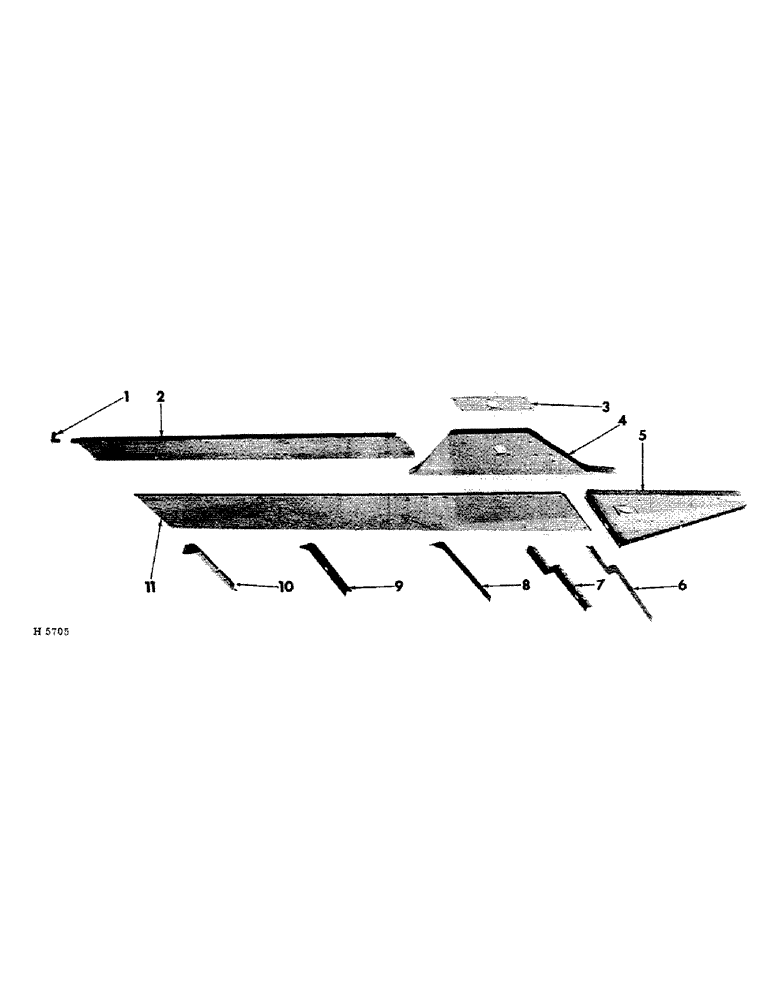

Запчасти Case IH 102 (C-03) - SPREADER BOX SIDES, LEFT SHOWN

1

612963R1

FILLER, front corner

2шт.

2

612809R2

ROLL, side top LH

1шт.

2

612810R1

ROLL, side top RH

1шт.

14990R1

BOLT

W/NUT, 5/16 x 5/8" crg

2шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

15001R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 7/8", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 7/8", G2, Full Thd

2шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

4шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

7шт.

15022R1

BOLT,Sht Sq Nk, 5/16" - 18 x 1 1/4"

W/NUT, 5/16 x 1-1/4" crg

2шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

8шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (24-LH; 23-RH) 5/16"

1шт.

3

612799R1

PLATE, upper beater support outer

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

1шт.

19417R1

BOLT

W/NUT, 3/8 x 1" cd-pltd crg

7шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

8шт.

4

612820R11

SHEET, side top LH

1шт.

4

612821R11

SHEET, side top RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

8шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

2шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

4шт.

14995R1

BOLT

W/NUT, 3/8 x 3/4" crg

4шт.

Q399

WASHER

WASH, 11/32 x 1 x 16 ga

2шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, (13-LH; 12-RH) 5/16"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

5

612818R21

SHEET, side rear LH

1шт.

5

612819R21

SHEET, side rear RH

1шт.

14994R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 3/4", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 3/4", G2

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

17422R1

BOLT W/NUT, 1/2 x 7/8" mach (3-RH) (1-LH)

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, (3-RH) (1-LH) 1/2"

1шт.

6

612837R1

ANGLE, top sheet rear LH, Serial Range: (prior-1964)

1шт.

6

609361R1

ANGLE, top sheet rear LH (1964 & since)

1шт.

6

612838R1

ANGLE, top sheet rear RH, Serial Range: (prior-1964)

1шт.

6

609362R1

ANGLE, top sheet rear RH (1964 & since)

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

1шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8 cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

7

612835R2

ANGLE, top sheet front LH

1шт.

7

612836R1

ANGLE, right top sheet front RH

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

8

612834R2

ANGLE, side second LH

1шт.

8

612833R2

ANGLE, side second RH

1шт.

19431R1

BOLT

W/NUT, 3/8 x 1-1/8" cd-pltd crg

4шт.

19493R1

BOLT W/NUT, 1/2 x 1" cd-pltd crg

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

120384

WASHER,1/2"

LOCK, 1/2"

2шт.

9

612831R2

ANGLE, side first LH

1шт.

9

612832R2

ANGLE, side first RH

1шт.

19573R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" cd-pltd mach

2шт.

19427R1

BOLT

W/NUT, 3/8 x 7/8" cd-pltd

2шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

4шт.

10

612829R1

ANGLE, corner LH

1шт.

10

612830R1

ANGLE, corner RH

1шт.

623072R1

BOLT W/NUT, 1/2 x 1" cd-pltd mach

2шт.

19493R1

BOLT W/NUT, 1/2 x 1" cd-pltd crg

2шт.

120384

WASHER,1/2"

LOCK, 1/2"

4шт.

11

612863R1

BOARD, side LH, Serial Range: (prior-1966)

1шт.

11

592670R1

BOARD, side LH (1966 & since)

1шт.

11

612864R1

BOARD, side RH

1шт.

19281R1

BOLT

W/NUT, 5/16 x 1" cd-pltd crg

4шт.

15007R1

CARRIAGE BOLT,Sq Nk, 5/16" - 18 x 1", Gr 2

BOLT, CARRIAGE, , w/Nut Short NK, 5/16"-18 x 1", G2

18шт.

15014R1

BOLT,Sq Nk, 5/16" x 1 1/8"

W/NUT, 5/16 x 1-1/8" crg

6шт.

15015R1

SCREW,Sq Nk, 3/8" - 16 x 1 1/8"

BOLT W/NUT, 3/8 x 1-1/8" crg

4шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

13шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, (3-LH; 2-RH) 3/8"

1шт.
