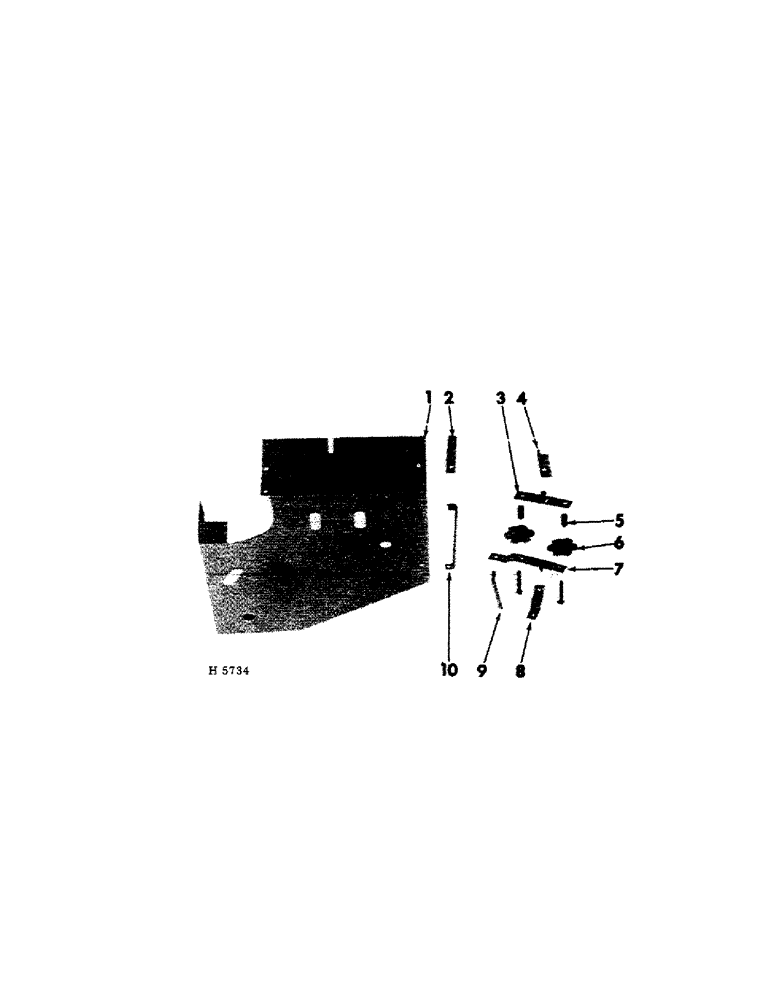

Запчасти Case IH 102 (C-18) - LEFT CHAIN TIGHTENERS AND SHIELD, 1960 SEASON

1

SHIELD, ratchet wheel (order 1-613562R1, bracket & 1-613562R1, shield)

1шт.

2

613175R1

BRACKET, shield upper

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

W/NUT, 5/16 x 5/8" mach

1шт.

19428R1

BOLT W/NUT, 5/16 x 5/8" cd-pltd crg

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

3

617502R11

ARM, chain tightener inner

1шт.

4

619648R1

SUPPORT, chain tightener

1шт.

17426R1

BOLT,Hex, 3/8" - 16 x 1", Gr 2

W/NUT, 3/8 x 1" mach.

1шт.

17486R1

BOLT

W/NUT, 1/2 x 5/6" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

5

618439R1

SPACER, tightener sprocket

2шт.

6

617412R1

SPROCKET, 6T chain tightener

2шт.

620485R1

BOLT, sprocket oil

2шт.

109461

LUBE NIPPLE,1/8"-27 x .66 lg

NIPPLE, LUBE, 1/8"-27 x .66 lg

2шт.

102637

NUT,1/2"-13, G5

2шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

7

617503R11

ARM, chain tightener outer

1шт.

8

617501R1

SUPPORT, chain tightener

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8 mach

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/6" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

9

617434R1

BOLT, chain tightener

1шт.

102637

NUT,1/2"-13, G5

2шт.

12026R1

WASHER

WASH., 17/32 x 1-1/4 x 16 ga

1шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

1шт.

10

613176R1

BRACKET, shield lower

1шт.

17412R1

BOLT,Hex, 3/8" - 16 x 3/4", Gr 2

W/NUT, 3/8 x 3/4" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
