Запчасти Case IH 102 (C-16) - BEATER CLUTCH

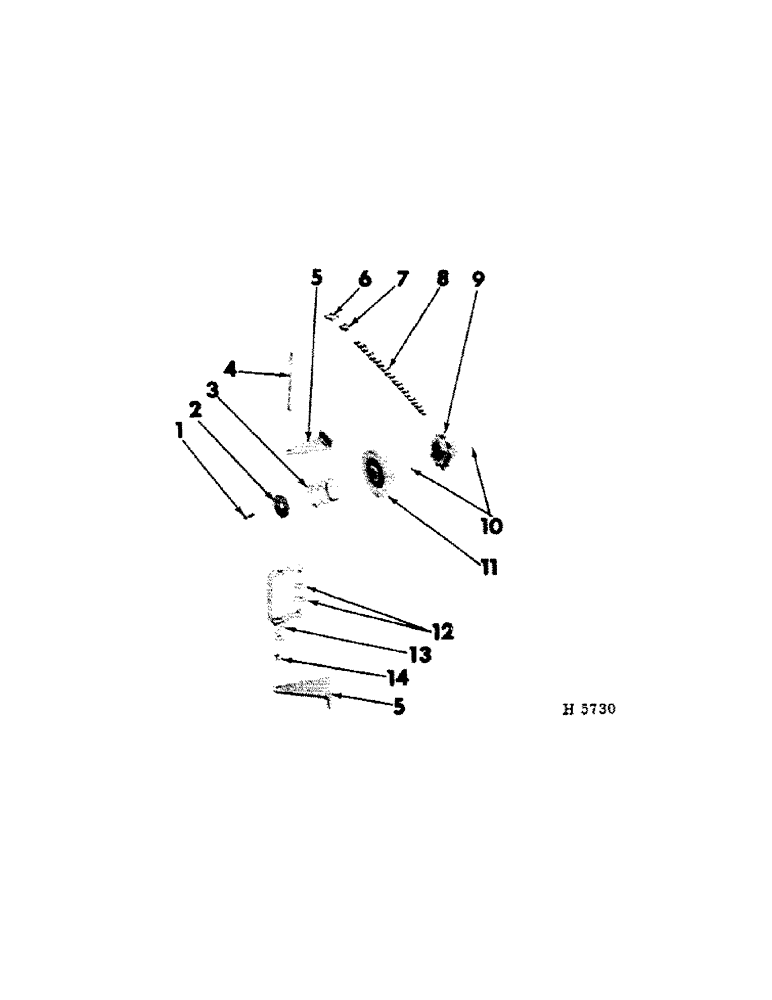

Схема запчастей Case IH 102 - (C-16) - BEATER CLUTCH

Артикул

Название

Примечание

Количество

1

611490R1

BOLT, lower beater shaft lubrication

1шт.

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 NPT x .54" lg

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

611680R1

WASHER

beater clutch

1шт.

3

369A

SPRING

clutch throw-out

1шт.

4

617424R1

SHAFT, clutch throw-out

1шт.

12026R1

WASHER

WASH., 17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

5

619583R1

SUPPORT, clutch throw-out shaft

2шт.

15002R1

BOLT, CARRIAGE, Short NK, 3/8"-16 x 7/8", G2, Full Thd, w/Nut Short NK, 3/8"-16 x 7/8", G2, Full Thd

4шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

6

567009R91

CHAIN LINK

LINK, drive chain offset

2шт.

1370D

PIN, offset link

1шт.

1376D

C-PIN, 1/4 lb. pkg

1шт.

7

567007R91

DRAG LINK

LINK, drive chain connecting

1шт.

1376D

C-PIN, 1/4 lb pkg

1шт.

8

CHAIN, widespread & lower beater drive (1-1/2" extended pitch agriculture) (order 1-569090R91, 10 ft chain, reduce to 33 links add 2-567009R91 offset links & 1-567007R91, connecting link)

1шт.

9

612730R1

SPROCKET, 9T beater drive

1шт.

80717

LUBE NIPPLE,45 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 45 degree elbow

1шт.

10

152450R1

SNAP RING,#125, Ext

Ring, Snap, , sprocket #125, Ext

2шт.

11

609055R1

CAM

PLATE, clutch

1шт.

12

617439R1

WASHER

ROLLER, clutch throw-out

2шт.

13

617633R91

ARM, clutch throw-out

1шт.

12026R1

WASHER

WASH, 17/32 x 1-1/4 x 16 ga

2шт.

432-1216

COTTER PIN,3/16" x 1"

Pin, Split (Cotter), 3/16" x 1"

2шт.

14

612714R1

SPACER

throw-out shaft

1шт.

Выбрано товаров: 26
