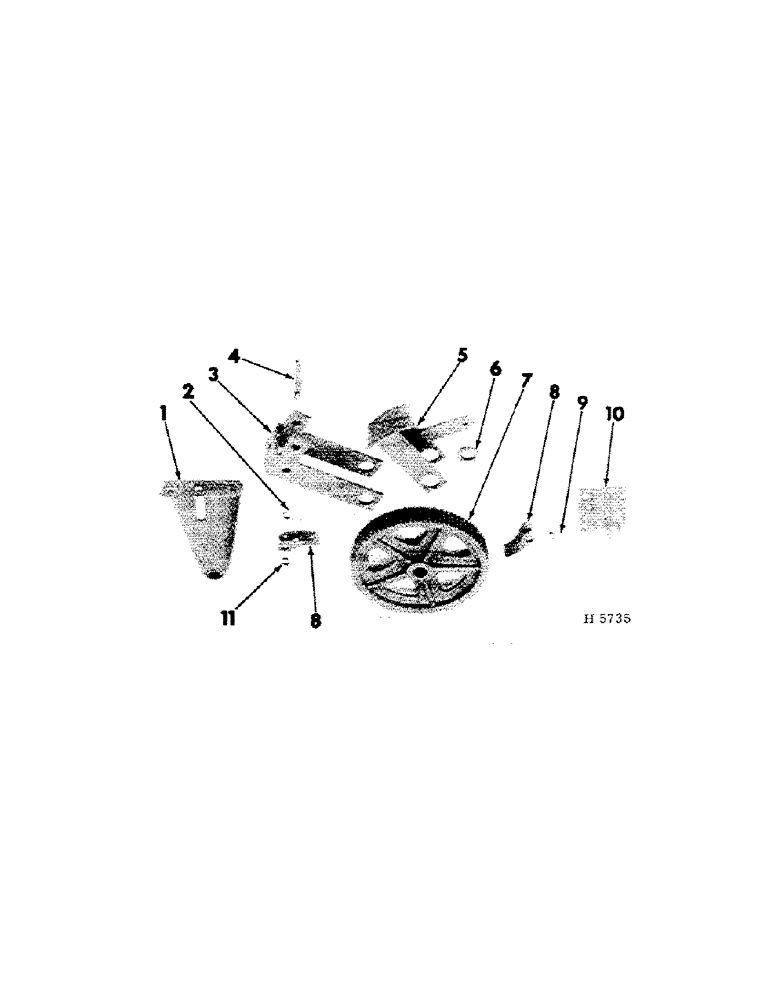

Запчасти Case IH 102 (C-15[A]) - RATCHET WHEEL

1

612814R11

SUPPORT, rear apron shaft

1шт.

17420R1

BOLT,Hex, 3/8"-16 x 7/8", G2

W/NUT, 3/8 x 7/8" mach

1шт.

17428R1

BOLT,Hex, 1/2"-13 x 1", G2, Full Thd

W/NUT, 1/2 x 1" mach

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

2

612872R1

SPRING

front ratchet pawl

1шт.

3

612904R91

BOW, ratchet

1шт.

4

612748R1

PIN, pitman

1шт.

Q3501

WASHER

WASH., 25/32 x 1-1/4 x 16 ga

2шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

5

612901R91

SECTOR, feed control

1шт.

6

614014R1

BUSHING, feed control sector

2шт.

7

617415R1

WHEEL

90T ratchet

1шт.

126

KEY,1/4" Sq x 2 1/2", Par

1/4 x 1/4 x 2-1/2" straight

1шт.

8

617431R1

PAWL

ratchet

2шт.

49996K

PIN, 5/8 x 4-1/2" std-hd dld

1шт.

551177R1

WASHER

WASH., 21/32 x 1-1/4 x 16 ga

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

9

5291SA

SPRING

rear pawl

1шт.

10

619699R91

SUPPORT, pawl holding

1шт.

80280503

CARRIAGE BOLT,Sht Sq Nk, 3/8" - 16 x 1", Gr 5, Full Thd

BOLT W/NUT, 3/8 x 1" crg

4шт.

Q1505

WASHER

WASH., 13/32 x 1 x 16 ga

4шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

11

610993R1

WASHER

ratchet pawl

2шт.
