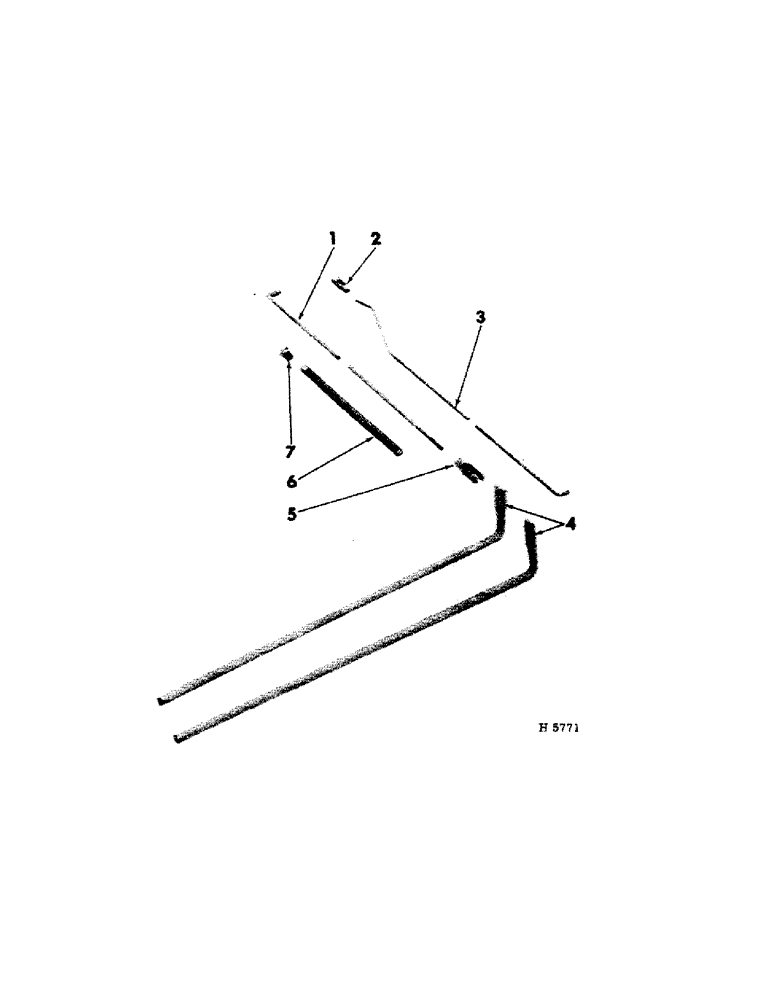

Запчасти Case IH 102 (C-14) - FEED CONTROL UNIT

1

612765R1

ROD, feed control

1шт.

W6652

WASHER

WASH., 15/32 x 1 x 16 ga

2шт.

32-1212

COTTER PIN,3/16" x 3/4"

PIN, SPLIT (COTTER), 3/16" x 3/4"

2шт.

2

104037

CLEVIS

clutch throw-out rod

1шт.

Q876

AXLE PIN

PIN, 5/16 x 1-1/8" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

3

612764R1

ROD, clutch throw-out

1шт.

Q398

WASHER

WASH., 11/32 x 7/8 x 16 ga

2шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

4

612751R1

ROD, adjusting (rope control)

2шт.

617938R1

PIN,5/16" x 1 3/8", Coiled

2шт.

Q3501

WASHER

WASH, 25/32 x 1-1/4 x 16 ga

1шт.

432-1220

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

1шт.

4

613267R1

ROD, adjusting (lever control)

2шт.

5

117825

CLEVIS, feed control rod

1шт.

M7801/2

DOWEL

PIN, 7/16 x 1-5/16" std-hd dld

1шт.

103384

COTTER PIN,1/8" x 3/4"

Pin, Split (Cotter), 1/8" x 3/4"

1шт.

6

612871R1

SPRING

feed control rod

1шт.

7

612868R1

COLLAR, feed control rod

1шт.

83-1255

SET SCREW,Hex Soc, 1/4"-20 x 5/16"

SCREW, 1/4 x 5/16" hdls-cup-pt set

1шт.
