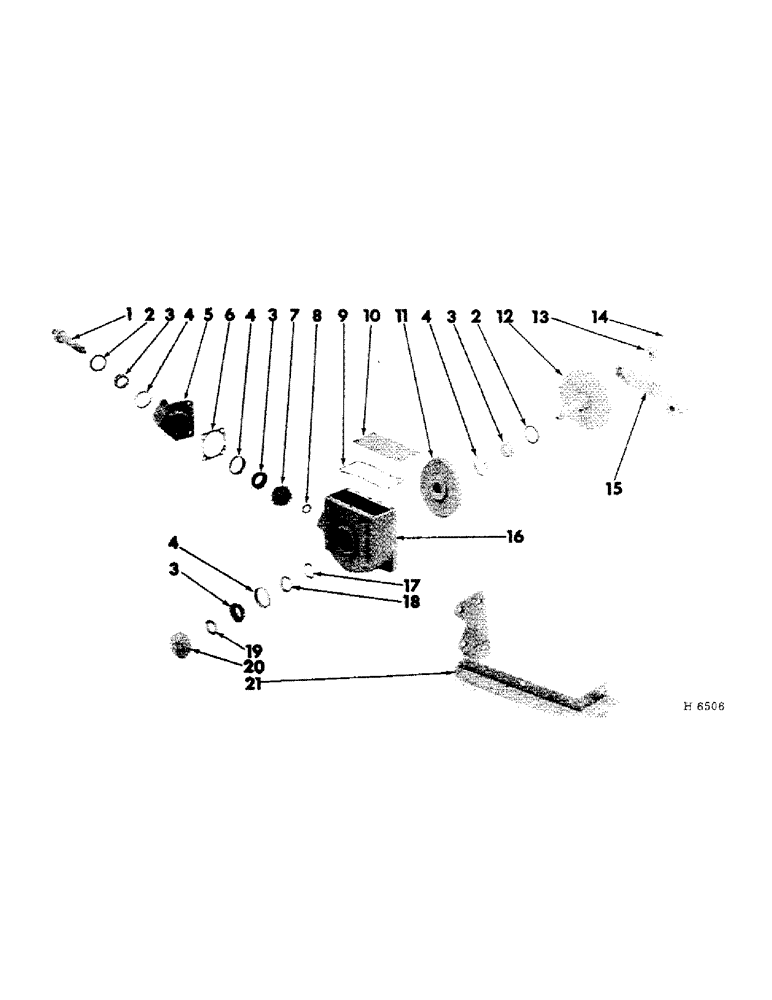

Запчасти Case IH 102 (C-13) - MAIN DRIVE GEAR CASE

613711R93

CASE, main drive gear (consists of parts listed, unless otherwise noted)

1шт.

1

612750R1

SHAFT, gear case bevel pinion

1шт.

612887R1

WASHER

WASH., special pinion

1шт.

102649

SLOTTED NUT,5/8"-18, G5

NUT, 5/8"-18, G5

1шт.

103385

COTTER PIN,1/8" x 1"

PIN, SPLIT (COTTER), 1/8" x 1"

1шт.

2

612964R91

SEAL

OIL SEAL, bevel pinion & gear

2шт.

3

651818R91

ROLLER BEARING,31.77 mm ID x 16.08 mm

CONE, gear case brg

4шт.

4

651817R1

BEARING CUP

CUP, gear case brg

4шт.

4

651817R1GV

BEARING CUP

Value, Bearing Cup

4шт.

5

612734R1

HOUSING

bevel gear

1шт.

179840

BOLT,Hex, 3/8" - 16 x 1 1/8", Gr 5

3/8 x 1-1/8" type 2

1шт.

179841

BOLT,Hex, 3/8" - 16 x 1 1/4", Gr 5

3шт.

15041R1

CARRIAGE BOLT,Short Sq Nk, 1/2" - 13 x 1 1/2"

BOLT W/NUT, 1/2 x 1-1/2" crg

2шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

4шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

2шт.

6

612856R1

GASKET

SHIM, bevel gear housing

1шт.

7

612883R2

GEAR

PINION, main drive bevel

1шт.

8

612887R1

WASHER

pinion special

1шт.

9

612881R1

GASKET

gear case cover

1шт.

10

612802R1

COVER, gear case

1шт.

17407R1

BOLT,5/16" - 18 x 5/8"

5/16 x 5/8" mach

6шт.

103320

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

6шт.

11

612882R2

GEAR, main drive bevel

1шт.

609379R1

KEY, 5/16 x 5/16 x 2" straight

1шт.

12

612900R91

SPROCKET, widespread beater drive

1шт.

612634R1

NUT

7/8" sltd

1шт.

114505

JAM NUT,Jam, 1/2"-13, G5

1шт.

+ Not part of gear case assembly

1шт.

12026R1

WASHER

WASH., 17/32 x 1-1/4 x 16 ga

1шт.

+ Not part of gear case assembly

1шт.

103387

COTTER PIN,1/8" x 1 1/2"

Pin, Split (Cotter), 1/8" x 1 1/2"

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

13

617617R91

BALL BEARING,15.86mm ID x 49.21mm OD x 20.65mm W

BEARING, arm (opt w/607849R91)

1шт.

+ Not part of gear case assembly

1шт.

13

607849R91

BEARING, arm (opt w/617617R91)

1шт.

+ Not part of gear case assembly

1шт.

14

617618R1

SNAP RING,#193, 2.025, Int, Spiral

RING, rocker arm retaining

1шт.

+ Not part of gear case assembly

1шт.

15

612745R1

ARM, ratchet rocker

1шт.

+ Not part of gear case assembly

1шт.

332040

LUBE NIPPLE,90 Degree, 1/8" NPT x .84" lg

LUB-FTG, 1/8" - 90 degree elbow

1шт.

+ Not part of gear case assembly

1шт.

16

612735R21

CASE, gear (includes 103866 plugs)

1шт.

9617020

PLUG,1/4" - 18 x 0.48"

1/4" sq-hd pipe

1шт.

17486R1

BOLT

W/NUT, 1/2 x 1-5/8" mach

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

1шт.

17

612857R1

SHIM

bevel gear

1шт.

18

612763R1

WASHER, bevel gear

1шт.

19

612889R1

WASHER

special bevel gear

1шт.

20

612884R1

HUB CAP

CAP, gear case bevel gear

1шт.

21

612899R91

SUPPORT, gear case

1шт.

+ Not part of gear case assembly

1шт.

17437R1

BOLT W/NUT, 3/8 x 1-1/8" mach

1шт.

+ Not part of gear case assembly

1шт.

17439R1

BOLT,Hex, 1/2" - 13 x 1 1/8", Gr 2

W/NUT, 1/2 x 1-1/8" mach

2шт.

+ Not part of gear case assembly

1шт.

17448R1

BOLT (SPREADER)

BOLT W/NUT, 1/2 x 1-1/4" mach

1шт.

+ Not part of gear case assembly

1шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

+ Not part of gear case assembly

1шт.

103323

LOCK WASHER,1/2"

WASHER, LOCK, 1/2"

3шт.

+ Not part of gear case assembly

1шт.
