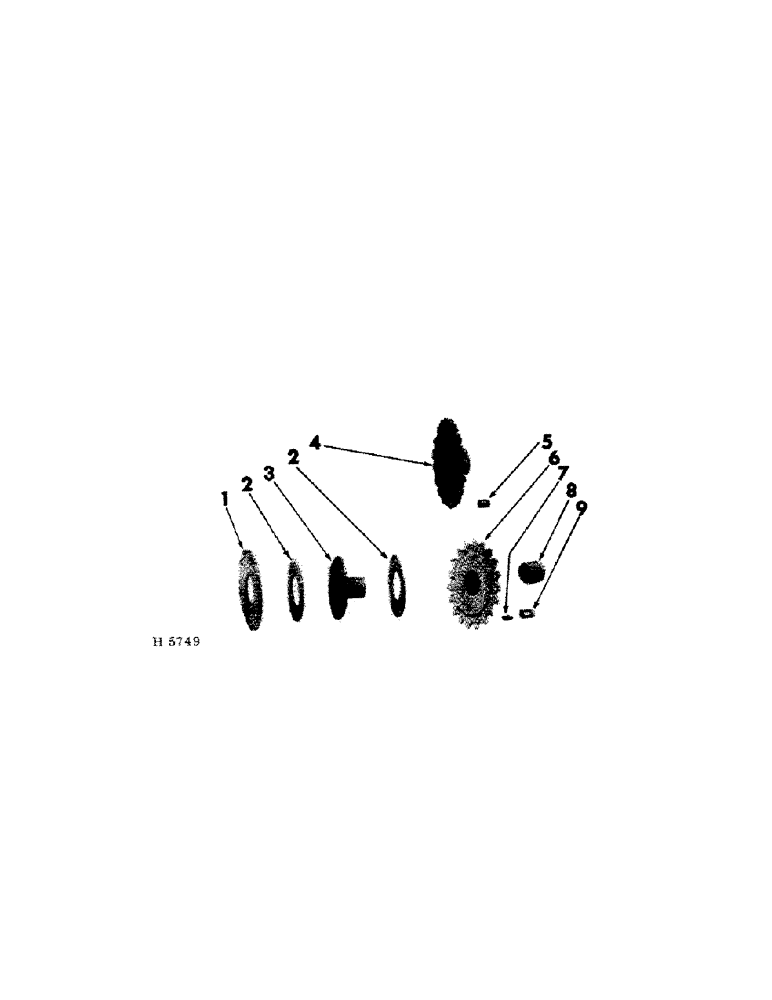

Запчасти Case IH 102 (C-12) - SIDE DRIVE SHAFT CLUTCH

1

617486R1

PLATE, clutch backing

1шт.

15124R1

BOLT (SPREADER)

BOLT W//NUT, 3/8 x 2-3/4" crg (6-1960)

1шт.

15142R1

BOLT (SPREADER)

BOLT W/NUT, 3/8 x 3" crg (6-1961 & since)

1шт.

Q1505

WASHER

WASH, 13/32 x 1 x 16 ga

6шт.

103321

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

6шт.

2

617619R1

FACING

clutch

2шт.

3

612744

PLATE, clutch

1шт.

T14185

KEY, 1/4 x 1/4 x 2-3/4" straight 1/4" Sq x 2 3/4", Par

1шт.

4

619711R1

SPROCKET ASSY.

SPROCKET, 19T clutch (1960)

1шт.

5

611420R1

SPRING

clutch pressure (1960)

6шт.

6

613745R11

SPROCKET, 540 RPM 19T clutch (includes bush, 613752R1) (1961 & since)

1шт.

6

613744R11

SPROCKET, 1000 RPM 22T clutch (includes 613752R1, bush.) (1961 & since)

1шт.

7

613828R1

SPACER

clutch spg (1961 & Since)

6шт.

8

613752R1

BUSHING

clutch sprocket (1961 & since)

1шт.

9

613827R1

SPRING

clutch pressure (1961 & since)

6шт.
