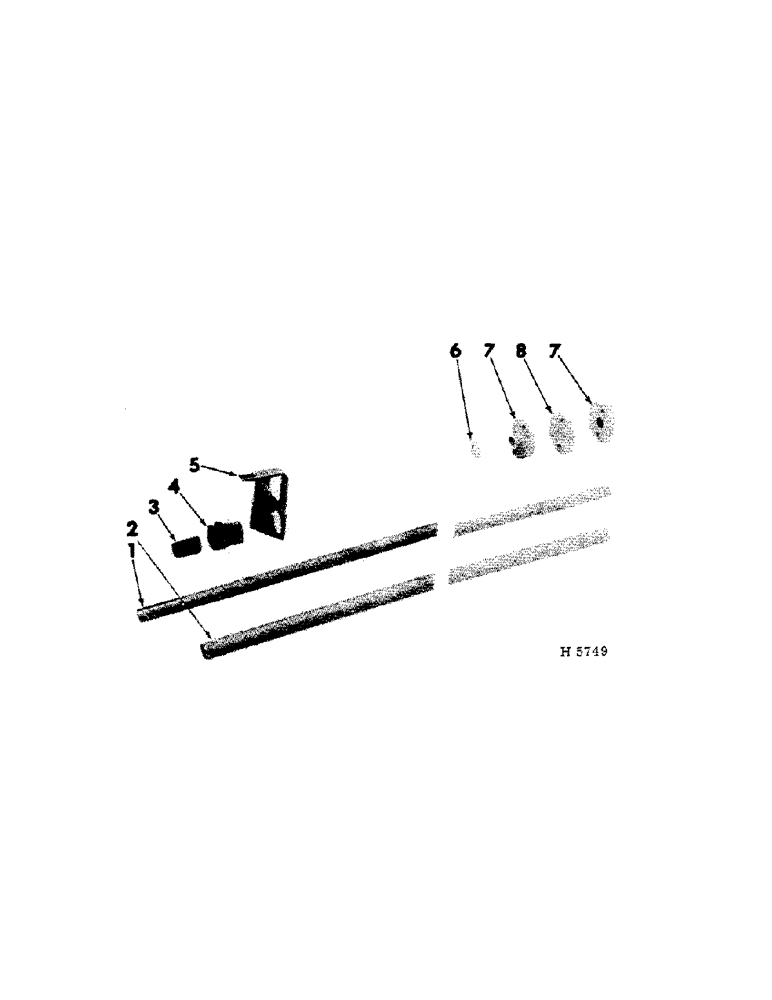

Запчасти Case IH 102 (C-12[B]) - SIDE DRIVE SHAFT

1

612753R1

SHAFT, side drive

1шт.

432-1624

COTTER PIN,1/4" x 1 1/2"

Pin, Split (Cotter), 1/4" x 1 1/2"

1шт.

551771R1

WASH., 1-5/32 x 2-1/2 x 16 ga

1шт.

Q162

WASHER

WASH., 1-5/32 x 1-3/4 x 16 ga

1шт.

2

612914R1

SHIELD, drive shaft tube

1шт.

3

619670R91

NEEDLE BEARING

BEARING, shaft (opt w/609047R91)

1шт.

3

609047R91

BEARING

shaft (opt w/619670R91)

1шт.

4

619539R1

CAGE

HOUSING, drive shaft brg

1шт.

80711

LUBE NIPPLE,65 Degree, 1/8" NPT x 7/8" lg

LUB-FTG, 1/8" - 65 degree elbow

1шт.

5

612787R11

BRACKET, brg housing support

1шт.

19283R1

BOLT W/NUT, 5/16 x 1-1/2" cd-pltd crg

1шт.

19433R1

BOLT W/NUT, 3/8 x 1-1/2" cd-pltd crg

1шт.

18779R1

BOLT,Hex, 3/8"-16 x 1 1/2", Gr 2

W/NUT, 3/8 x 1-1/2" cd-pltd mach

1шт.

80681

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

1шт.

120382

LOCK WASHER,Helical Spring, 3/8"

WASHER, LOCK, 3/8"

2шт.

6

B12219

WASHER

knuckle

1шт.

7

612733R1

HUB

COUPLING, side drive shaft

2шт.

19758R1

BOLT, 1/2 x 2-1/4" cd-pltd dld mach

2шт.

121592

SLOTTED NUT,1/2"-13, G5

NUT, 1/2" cd-pltd slt

2шт.

103374

COTTER PIN,3/32" x 1"

Pin, Split (Cotter), 3/32" x 1"

2шт.

8

608054R1

PAD

DISK, coupling

1шт.
